• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23896

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM87 EABC80 ECC83 ECC83 ECC83 EF86 EL84 EL84 EL84 EL84 EL84

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 155; 220 Volt

• Loudspeaker

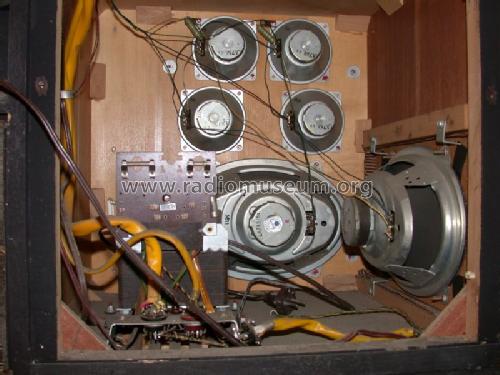

• 7 or more Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

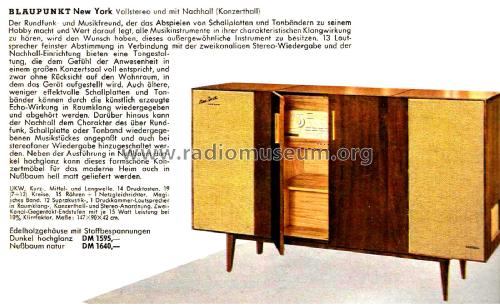

• Model: New York 41 400 [mattiert] - Blaupunkt Ideal, Berlin,

• Shape

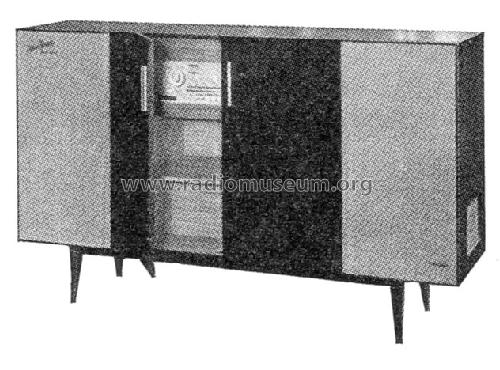

• Console with Push Buttons.

• Dimensions (WHD)
• 1470 x 900 x 420 mm / 57.9 x 35.4 x 16.5 inch

• Notes

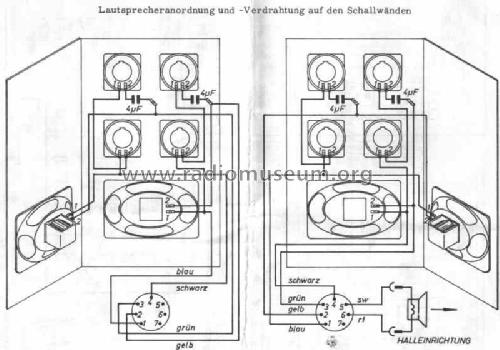

• Stereo-NF-Verstärker mit Nachhalleinrichtung und zwei Gegentakt-Endstufen, zusammen 25 W auf 12 Lautsprecher. Phono-Chassis = Perpetuum-Ebner PE66.

• Net weight (2.2 lb = 1 kg)
• 80 kg / 176 lb 3.4 oz (176.211 lb)

• Price in first year of sale
• 1,640.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62
