New York-Vollstereo 4645 hell mat.

New York-Vollstereo 4645; Blaupunkt Ideal, (ID = 82542) Radio

New York-Vollstereo 4645; Blaupunkt Ideal, (ID = 82545) Radio
New York-Vollstereo 4645; Blaupunkt Ideal, (ID = 493813) Radio New York-Vollstereo 4645; Blaupunkt Ideal, (ID = 1796303) Radio

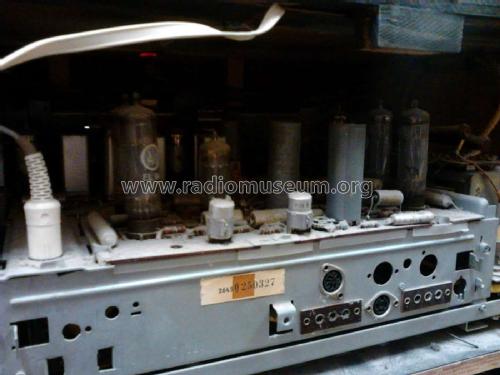

New York-Vollstereo 4645; Blaupunkt Ideal, (ID = 1796304) Radio New York-Vollstereo 4645; Blaupunkt Ideal, (ID = 1796305) Radio
New York-Vollstereo 4645; Blaupunkt Ideal, (ID = 1898916) Radio
Use red slider bar for more.
New York-Vollstereo 4645; Blaupunkt Ideal, (ID = 493813) Radio
Blaupunkt Ideal,: New York-Vollstereo 4645 [Radio] ID = 493813 800x611
Select picture or schematic to display from thumbnails on the right and click for download.
For model New York-Vollstereo 4645 hell mat., Blaupunkt (Ideal), Berlin, später Hildesheim:
Original prospekt.

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 15: ECC85 EF89 EF89 ECH81 EM84 EABC80 EF86 ECC83 ECC83 ECC83 EL84 EL84 EL84 EL84 EL84
Main principle Super-Heterodyne (Super in general)
Tuned circuits 7 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 7 or more Loudspeakers
Power out
from Radiomuseum.org Model: New York-Vollstereo 4645 [hell mat.] - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 1470 x 900 x 460 mm / 57.9 x 35.4 x 18.1 inch
Notes hell mattiert. 9 Lautsprecher: 4x180x260mm, 4x100mm, 1x Druckkammerlautsprecher. Plattenspieler Rex de Luxe Stereo.
Net weight (2.2 lb = 1 kg) 81 kg / 178 lb 6.6 oz (178.414 lb)
Price in first year of sale 1'498.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1959/60
