New York Vollstereo 4646
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 224473
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
- Number of Tubes
- 15
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 7 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org

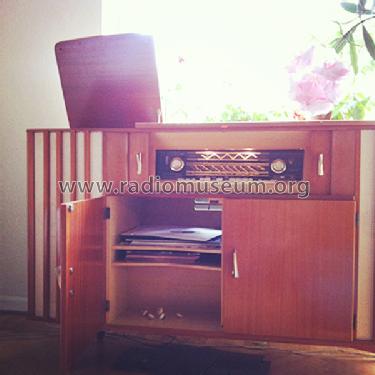

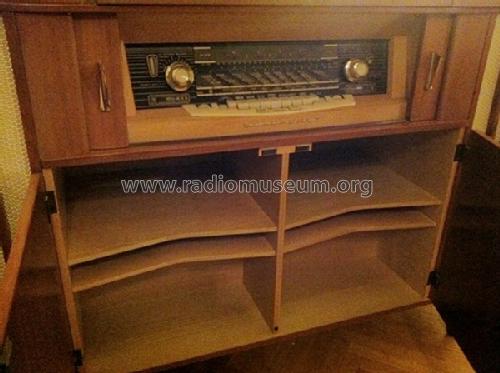

- Model: New York Vollstereo 4646 - Blaupunkt Ideal, Berlin,
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 1470 x 900 x 460 mm / 57.9 x 35.4 x 18.1 inch
- Notes
-
Swedish/scandinavian version of Blaupunkt New York 4645. Has Konzerthall with selection for Normal Concert-Hall or Studio. Probably teak. Finish very glossy. 9 speakers. 4 speakers 180x260mm, 4 speakers 100mm (round) and 1 speaker for the reverb unit (Konzerthall).
Changer Perpetuum-Ebner Deluxe stereo.
- Author
- Model page created by Gustav Bergström. See "Data change" for further contributors.
