Salerno 3D 2230 (USA)

Salerno 3D 2230 ; Blaupunkt Ideal, (ID = 2614253) Radio Salerno 3D 2230 ; Blaupunkt Ideal, (ID = 2445627) Radio
Salerno 3D 2230 ; Blaupunkt Ideal, (ID = 2445628) Radio Salerno 3D 2230 ; Blaupunkt Ideal, (ID = 2445629) Radio
Salerno 3D 2230 ; Blaupunkt Ideal, (ID = 2445630) Radio
Use red slider bar for more.

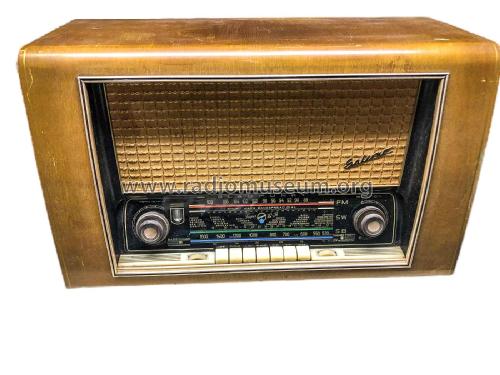

Salerno 3D 2230 ; Blaupunkt Ideal, (ID = 2614253) Radio
Blaupunkt Ideal,: Salerno 3D 2230 [Radio] ID = 2614253 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Salerno 3D 2230 (USA), Blaupunkt (Ideal), Berlin, später Hildesheim:
Blaupunkt Salerno Exportmodell

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 EF89 ECH81 EBF80 EM80 EAA91 ECC83 EL84
Semiconductors (the count is only for transistors) B250C100
Main principle Superhet with RF-stage; Export model
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 155; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Salerno 3D 2230 - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 627 x 385 x 273 mm / 24.7 x 15.2 x 10.7 inch
Notes

Exportversion für die USA des inländischen Blaupunkt-Modells Salerno 3D 2230.

UKW/FM 87.5 ... 108 MHz

Net weight (2.2 lb = 1 kg) 11.8 kg / 25 lb 15.9 oz (25.991 lb)

Model page created by Richard Winter. See "Data change" for further contributors.
