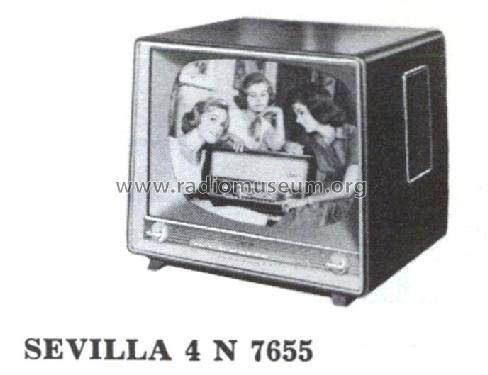

Sevilla 4N 7655
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1959 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 320670
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

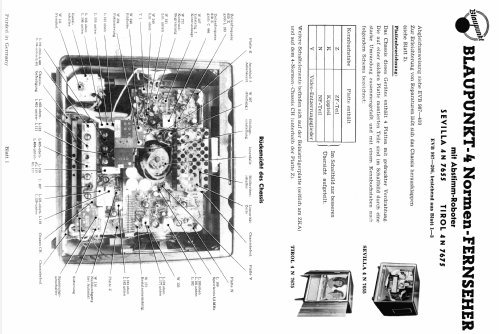

Bild aus Blaupunkt Service-Dokumentation
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 24
- Valves / Tubes
- PCC88 PCF82 PCF82 EF80 EF80 PM84 EF80 ECF80 PCL84 EF80 EF80 PABC80 PL82 EF80 EF80 ECH81 EC92 ECC81 PCL82 ECC81 PL36 PY83 EY86 MW53-80
- Number of Transistors
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 155; 220; 240 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sevilla 4N 7655 - Blaupunkt Ideal, Berlin,
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Blaupunkt Sevilla 4N 7655 ist ein 4-Normen-Fernsehempfänger für 625/819 Zeilen, Positiv- oder Negativmodulation, Tonträger in AM oder FM.
VHF-Kanalwähler für Band I und III.
- Literature/Schematics (1)
- -- Original-techn. papers. (Blaupunkt Service-Manual)
- Author
- Model page created by Bernhard Nagel. See "Data change" for further contributors.
- Other Models
-
Here you find 3554 models, 3240 with images and 2328 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
