L498W

L498W; Blaupunkt Ideal, (ID = 38325) Radio

L498W; Blaupunkt Ideal, (ID = 33931) Radio

L498W; Blaupunkt Ideal, (ID = 49703) Radio

L498W; Blaupunkt Ideal, (ID = 250017) Radio

L498W; Blaupunkt Ideal, (ID = 250015) Radio

L498W; Blaupunkt Ideal, (ID = 1376286) Radio

L498W; Blaupunkt Ideal, (ID = 1740572) Radio

L498W; Blaupunkt Ideal, (ID = 1740573) Radio

L498W; Blaupunkt Ideal, (ID = 1740574) Radio

L498W; Blaupunkt Ideal, (ID = 1740576) Radio
L498W; Blaupunkt Ideal, (ID = 76265) Radio L498W; Blaupunkt Ideal, (ID = 1138370) Radio
L498W; Blaupunkt Ideal, (ID = 1138371) Radio
Use red slider bar for more.
L498W; Blaupunkt Ideal, (ID = 76265) Radio

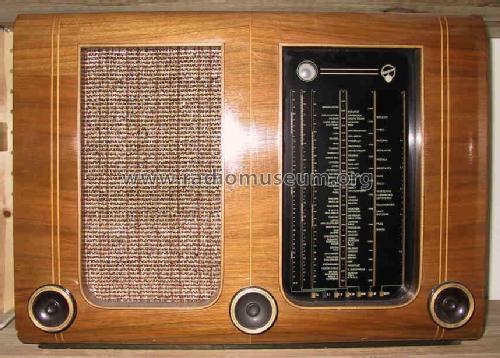

Blaupunkt Ideal,: L498W [Radio] ID = 76265 858x615

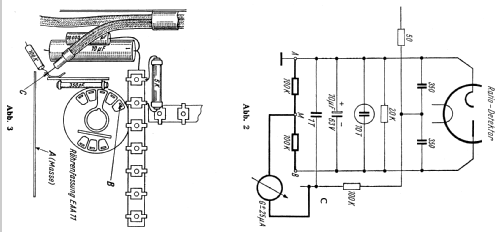

Select picture or schematic to display from thumbnails on the right and click for download.
For model L498W, Blaupunkt (Ideal), Berlin, später Hildesheim:
identisch mit Modell LU780

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: EF11 ECH11 EBF15 EF15 EM11 EAA11 EF11 EL12 AZ12
Main principle Superhet with RF-stage; ZF/IF 473 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 26 cm = 10.2 inch
Power out 8 W (unknown quality)
from Radiomuseum.org Model: L498W - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 400 x 290 mm / 21.3 x 15.7 x 11.4 inch

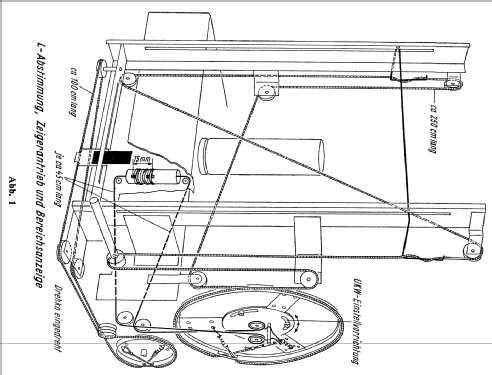

Notes L-Abstimmung bei UKW, C-Abstimmung bei AM. 3× KW, variable Bandbreite.
LU780 ID=803,
9kHz Sperre schaltbar, UKW Empfindlichkeit 100µV, mit Vorstufe EF15 50µV, stetig regelbare Tonblende, KW von 13- 54,5m in drei Bereichen.
Net weight (2.2 lb = 1 kg) 18.8 kg / 41 lb 6.6 oz (41.41 lb)
Price in first year of sale 498.00 DM
Source of data Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb

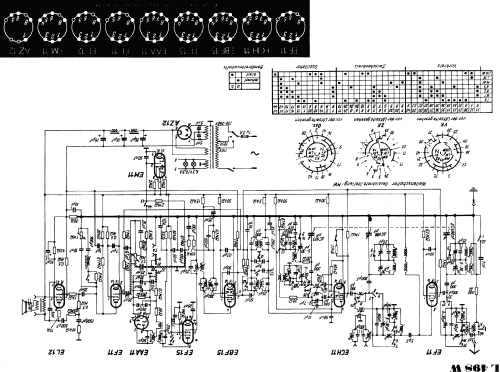

Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 2
Mentioned in Funk-Technik (FT) (5024)
