Sultan 3D 2320 (USA)
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1956/1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 134724
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
http://www.ppinyot.com/Blaupnkt.htm

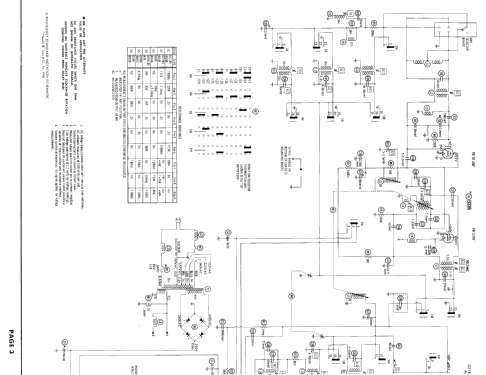

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 155; 220; 240 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sultan 3D 2320 - Blaupunkt Ideal, Berlin,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 540 x 315 x 250 mm / 21.3 x 12.4 x 9.8 inch
- Notes
-
The Blaupunkt model Sultan 2320 has a color-signature scale with names for SW stations instead of the broadcast stations as used in Europe. This is the export version: See the scale with Mc and kc - as the main difference to the domestic model. Sultan 2320 has two electostatic speakers with diameter 2" x 7" and a dynamic speaker of diaameter 6" x 8.5". SAMS Photofact shows the same schematic for Sultan 2320 as for the Blaupunkt export versions Arizona and Rio.
Der VDRG-Katalog gibt für das deutsche Parallelmodell 2320 falsche Werte an: B x H x T= 370 x 245 x 200 mm, 11.2 kg.
- Net weight (2.2 lb = 1 kg)
- 9.7 kg / 21 lb 5.9 oz (21.366 lb)
- Literature/Schematics (1)

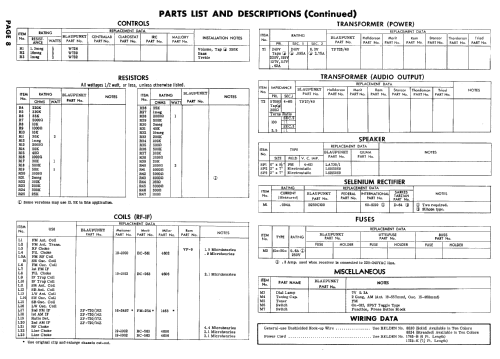

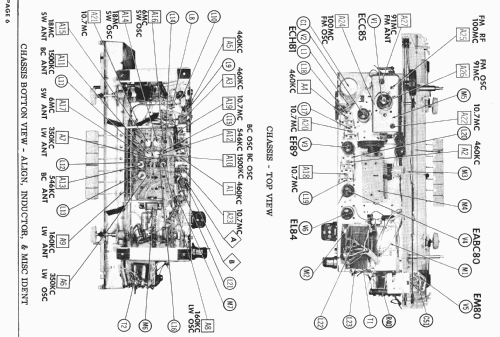

- Photofact Folder, Howard W. SAMS (Date 12-58, set 424, folder 4)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
- Other Models
-
Here you find 3527 models, 3216 with images and 2321 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
Collections
The model Sultan 3D is part of the collections of the following members.
Forum contributions about this model: Blaupunkt Ideal,: Sultan 3D 2320
Threads: 1 | Posts: 7
Good morning Gentlemen and any Ladies,
I am restoring a Blaupunkt Sultan 2320 today and have the alignment to do. I managed to figure out the 460 khz IF adjustments and some of AM related adjustments. But I am a bit lost on the FM adjustments. The problem is my lack of German language skills.
Is there an English alignment translation or similar model that I may follow (primarily for the FM alignment)? And how are the dial indicators to be mechanically aligned to the dial scale? Where should they stop/start.
Also I found an EABC80 substitute to be a 6T8. A Sam’s substitution guide lists the 6T8 as a substitute for the 6AK8. So far the 6T8 is performing well. Can any one confirm this tube as an acceptable substitute?
Thank you in advance,
Paul
Paul E. Pinyot † 2013, 11.Jul.08
