For model Sultan 61 20203, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker 3 Loudspeakers / Ø 20 cm = 7.9 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Sultan 61 20203 - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Blaupunkt Sultan 61 20203 is an export model for the North American market.
Uses the same chassis as Granada 20303.
See also the domestic model Sultan 20200 with additional LW range.
Collectors' prices

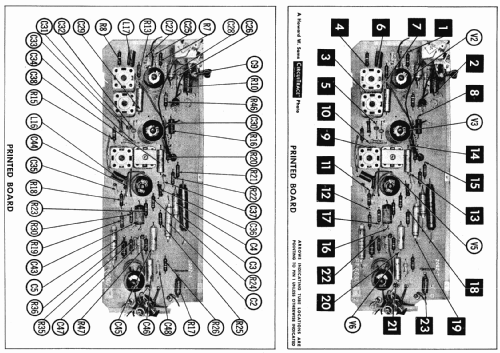

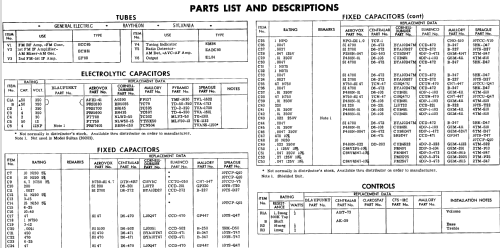

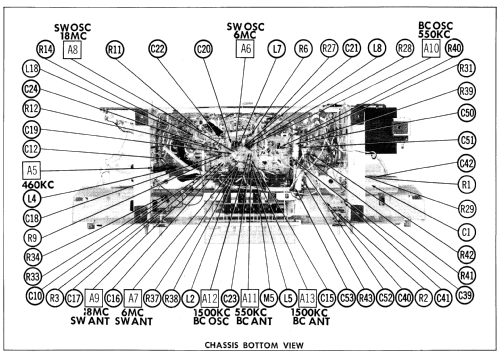

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 10-61, Set 552, Folder 4)

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
