• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1959 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 320671

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• PCC88 PCF82 PCF82 EF80 EF80 PM84 EF80 ECF80 PCL84 EF80 EF80 PABC80 PL82 EF80 EF80 ECH81 EC92 ECC81 PCL82 ECC81 PL36 PY83 EY86 MW53-80

• Number of Transistors

• Semiconductors
• G5/2 G5/61 RL43 RL43 OA160 RL32 RL43 OA161 OA161 Diode_Si

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 155; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

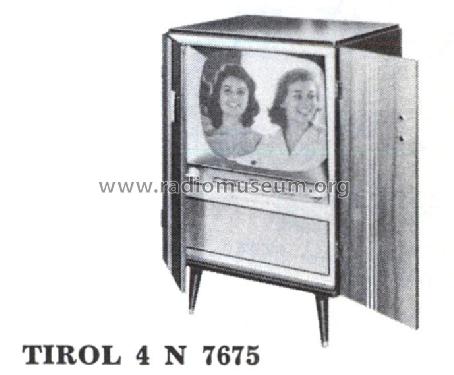

• Model: Tirol 4N 7675 - Blaupunkt Ideal, Berlin,

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Blaupunkt Tirol 4N 7675 ist ein 4-Normen-Fernsehempfänger für 625/819 Zeilen, Positiv- oder Negativmodulation, Tonträger in AM oder FM.

  VHF-Kanalwähler für Band I und III.

• Literature/Schematics (1)
• -- Original-techn. papers. (Blaupunkt Service-Manual)

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
