• Year
  • 1958/1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 304953
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

 Technical Specifications

  • Number of Tubes
  • 7
  • Number of Transistors
  • Main principle
  • Superhet with RF-stage; Export model
  • Tuned circuits
  • 6 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 105-120 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

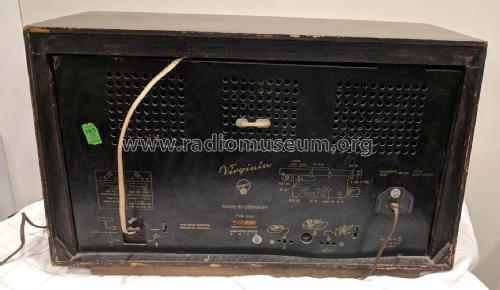

  • Model: Virginia 2530 USA - Blaupunkt Ideal, Berlin,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 620 x 375 x 285 mm / 24.4 x 14.8 x 11.2 inch
  • Notes
  • Blaupunkt Virginia USA 2530 ist ein Exportmodell, UKW/FM Bereich 87,5 ... 108 MHz.

    Siehe auch die inländischen Modelle Virginia 2530 hell und 2530 dunkel

  • Author
  • Model page created by Richard Winter. See "Data change" for further contributors.
