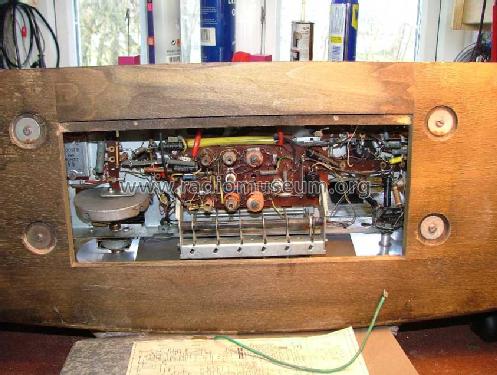

Braun; Frankfurt: 555UKW [Radio] ID = 472979 930x646
Select picture or schematic to display from thumbnails on the right and click for download.
For model 555UKW, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125;150; 220; 240 V Volt
Loudspeaker 2 Loudspeakers
Power out 6 W (unknown quality)
from Radiomuseum.org Model: 555UKW - Braun; Frankfurt
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 595 x 350 x 245 mm / 23.4 x 13.8 x 9.6 inch
Notes

Siehe auch Braun R555UKW mit Raumton (4 Lautsprecher).

Net weight (2.2 lb = 1 kg) 9.3 kg / 20 lb 7.8 oz (20.485 lb)
Price in first year of sale 259.00 DM
Collectors' prices
External source of data Erb
Source of data Rundfunk- und Fernseh-Katalog 1954/55
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 2
Mentioned in -- Original-techn. papers.


All listed radios etc. from Braun; Frankfurt
Here you find 1031 models, 892 with images and 633 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
