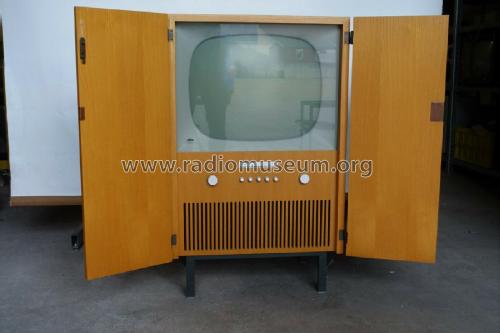

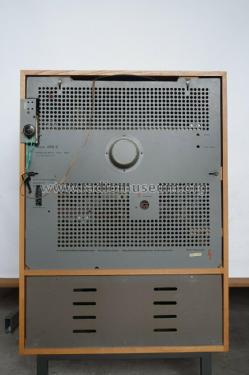

HFS2

HFS2; Braun; Frankfurt (ID = 1592627) Television

HFS2; Braun; Frankfurt (ID = 1592628) Television

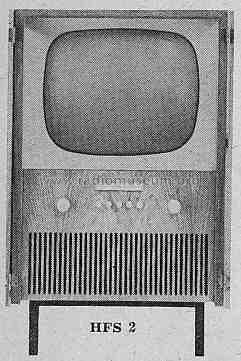

HFS2; Braun; Frankfurt (ID = 1202287) Television HFS2; Braun; Frankfurt (ID = 252002) Television
HFS2; Braun; Frankfurt (ID = 1202313) Television HFS2; Braun; Frankfurt (ID = 1202315) Television
HFS2; Braun; Frankfurt (ID = 1202316) Television HFS2; Braun; Frankfurt (ID = 1202317) Television

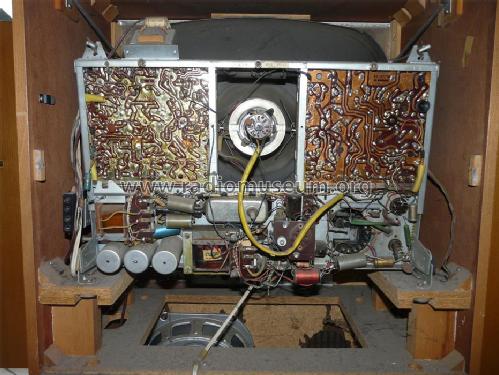

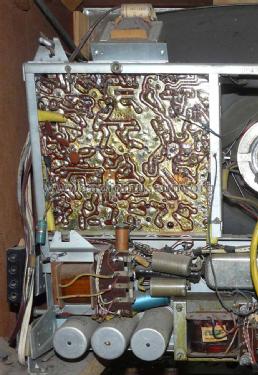

HFS2; Braun; Frankfurt (ID = 1236236) Television HFS2; Braun; Frankfurt (ID = 1236237) Television

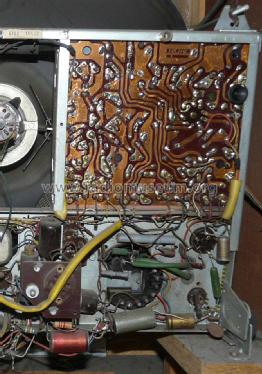

HFS2; Braun; Frankfurt (ID = 1236238) Television
Use red slider bar for more.
HFS2; Braun; Frankfurt (ID = 1202287) Television
Braun; Frankfurt: HFS2 [Television] ID = 1202287 933x695

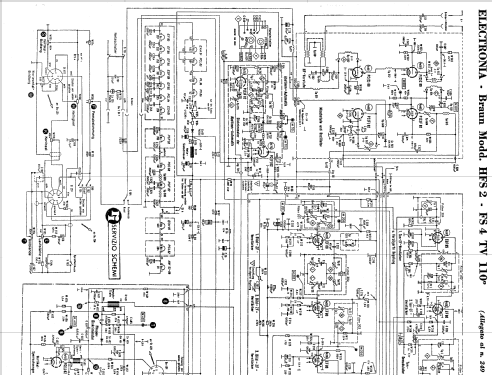

Select picture or schematic to display from thumbnails on the right and click for download.
For model HFS2, Braun; Frankfurt:
Mit freundlicher Genehmigung von Roland Podschelni, Dillenburg

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1959–1962 Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: PCC88 PCF82 PCF82 EF80 EF80 EF80 PCL84 EAA91 EBF89 EF80 PCL82 ECH81 PCL82 ECH81 PL36 PY88 DY86 AW53-88
Semiconductors (the count is only for transistors) OA180 OA150 OA150 OA160 OA160 OA161 OA161 OA172 OA172 Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)

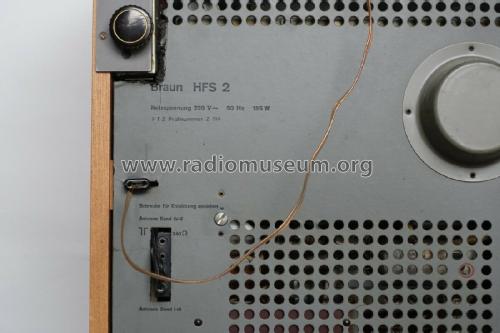

Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: HFS2 - Braun; Frankfurt
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 620 x 1003 x 432 mm / 24.4 x 39.5 x 17 inch
Notes Braun HFS2 empfängt VHF Band I und III und ist für den Einbau eines UHF-Teils vorbereitet.
Drehbare Gehäuseantenne für Band I und III.
Fernbedienung FR5 (DM 16,-) für Lautstärke und Helligkeit.
Lautsprecher: 1 perm.-dyn. 25x17 cm und 1 perm.-dyn. 10 cm.
Ausführung: Nussbaum oder Teak, natur, oder Rüster, mit Fussgestell und verschliessbaren Türen.
Net weight (2.2 lb = 1 kg) 51.5 kg / 113 lb 7 oz (113.436 lb)
Price in first year of sale 1'190.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1960/61

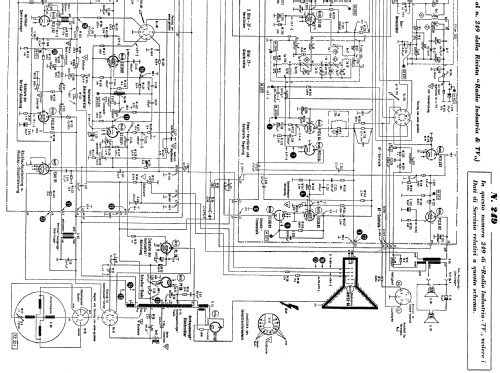

Literature/Schematics (1) Handbuch RFP 1959/60, Thiele Verlag, Helmstedt

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
