Phono-Super 555UKW

Phono-Super 555UKW; Braun; Frankfurt (ID = 1393484) Radio

Phono-Super 555UKW; Braun; Frankfurt (ID = 1393487) Radio

Phono-Super 555UKW; Braun; Frankfurt (ID = 91748) Radio
Phono-Super 555UKW; Braun; Frankfurt (ID = 91732) Radio Phono-Super 555UKW; Braun; Frankfurt (ID = 91734) Radio
Phono-Super 555UKW; Braun; Frankfurt (ID = 91731) Radio Phono-Super 555UKW; Braun; Frankfurt (ID = 91730) Radio
Phono-Super 555UKW; Braun; Frankfurt (ID = 91733) Radio Phono-Super 555UKW; Braun; Frankfurt (ID = 1658512) Radio
Phono-Super 555UKW; Braun; Frankfurt (ID = 1753385) Radio Phono-Super 555UKW; Braun; Frankfurt (ID = 1753392) Radio
Phono-Super 555UKW; Braun; Frankfurt (ID = 1917890) Radio Phono-Super 555UKW; Braun; Frankfurt (ID = 2265737) Radio
Use red slider bar for more.
Phono-Super 555UKW; Braun; Frankfurt (ID = 91732) Radio
Braun; Frankfurt: Phono-Super 555UKW [Radio] ID = 91732 654x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phono-Super 555UKW, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.

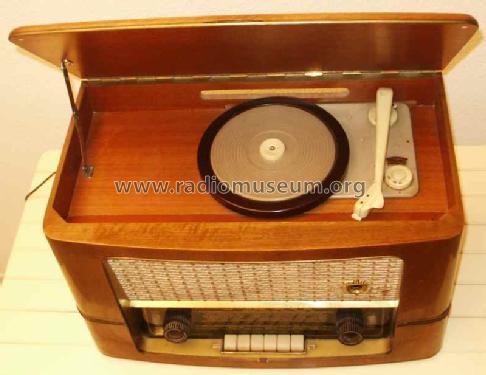

Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Phono-Super 555UKW - Braun; Frankfurt
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 595 x 362 x 342 mm / 23.4 x 14.3 x 13.5 inch
Notes

Phono-Chassis: Braun 777W mit Ronette Wendesystem (Normal/ Micro).

Siehe auch Braun Phono-Super R555UKW mit Raumton (4 Lautsprecher).

Net weight (2.2 lb = 1 kg) 14.4 kg / 31 lb 11.5 oz (31.718 lb)
Price in first year of sale 389.00 DM
Collectors' prices
External source of data Erb

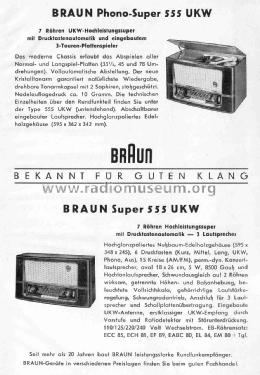

Source of data Rundfunk- und Fernseh-Katalog 1954/55

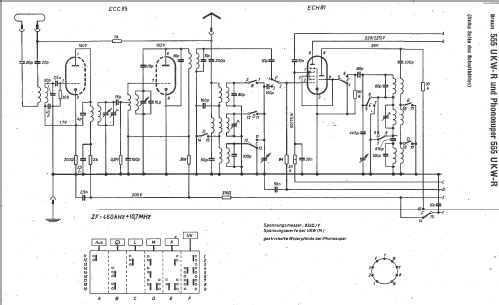

Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 2
Mentioned in -- Original-techn. papers.
