Phono-Super R555UKW Ch= Ph555UK

Phono-Super R555UKW Ch= Ph555UK; Braun; Frankfurt (ID = 1947461) Radio Phono-Super R555UKW Ch= Ph555UK; Braun; Frankfurt (ID = 1947463) Radio
Phono-Super R555UKW Ch= Ph555UK; Braun; Frankfurt (ID = 1947464) Radio Phono-Super R555UKW Ch= Ph555UK; Braun; Frankfurt (ID = 1949546) Radio
Phono-Super R555UKW Ch= Ph555UK; Braun; Frankfurt (ID = 1949547) Radio Phono-Super R555UKW Ch= Ph555UK; Braun; Frankfurt (ID = 1949548) Radio
Use red slider bar for more.
Phono-Super R555UKW Ch= Ph555UK; Braun; Frankfurt (ID = 1947461) Radio

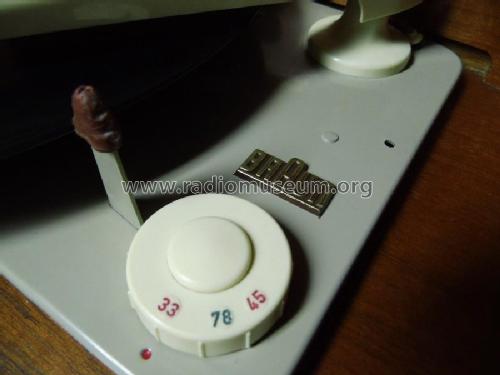

Braun; Frankfurt: Phono-Super R555UKW Ch= Ph555UK [Radio] ID = 1947461 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phono-Super R555UKW Ch= Ph555UK, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 4 Loudspeakers
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Phono-Super R555UKW Ch= Ph555UK - Braun; Frankfurt
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 565 x 370 x 330 mm / 22.2 x 14.6 x 13 inch
Notes

Phono-Chassis: Braun 777W mit Ronette Wendesystem (Normal/ Micro).
R = Raumton, mit dyn. Seitenlautsprechern.

Siehe auch Phono-Super 555UKW ohne Raumklang (2 Lautsprecher).

Model page created by Nico Pokrant. See "Data change" for further contributors.



All listed radios etc. from Braun; Frankfurt
Here you find 1039 models, 905 with images and 644 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Braun; Frankfurt: Phono-Super R555UKW Ch= Ph555UK
Threads: 1 | Posts: 3
Hits: 337     Replies: 2
braun: Funicella di sintonia
Michele Colombo
12.Jan.20
  1

Buongiorno.Avrei bisogno dello schema della cordicella di sintonia di una BRAUN SUPER 555 UKW, per poterla ripristinare essendosi rotta.

Grazie

Biagio Laureti
29.Jan.20
  2

Ciao Michele, guarda se ti può essere utile quanto indicato su PHILIPS BI 592A

Biagio Laureti
31.Jan.20
  3

Le foto erano in "pochino"  sfocate, ma credo di aver capito la posizione delle pulegge.

Come avrai capito il piano di posa della funicella è diverso sulle pulegge di supporto del carrello dell'indice, della puleggia del condensatore variabile e della gola sull'asse della manopola di sintonia.

Spero di essere stato chiaro nel disegno.

Buon lavoro Biagio.
