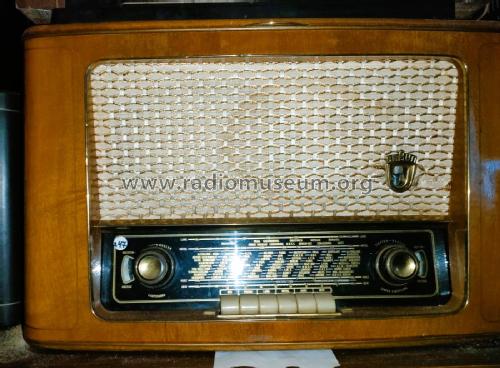

66 UKW Phono-Super; Braun; Frankfurt (ID = 35290) Radio
Braun; Frankfurt: 66 UKW Phono-Super [Radio] ID = 35290 767x501
Select picture or schematic to display from thumbnails on the right and click for download.
For model 66 UKW Phono-Super, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker 2 Loudspeakers
Power out 4 W (unknown quality)
from Radiomuseum.org Model: 66 UKW Phono-Super - Braun; Frankfurt
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 595 x 362 x 342 mm / 23.4 x 14.3 x 13.5 inch
Notes

Rundfunk-Chassis = 66UKW;
Phono-Chassis = 777W.

Net weight (2.2 lb = 1 kg) 14.4 kg / 31 lb 11.5 oz (31.718 lb)
Price in first year of sale 369.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1955/56
Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (2) D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli
