Super 739W

Super 739W; Braun; Frankfurt (ID = 274649) Radio

Super 739W; Braun; Frankfurt (ID = 8173) Radio

Super 739W; Braun; Frankfurt (ID = 6179) Radio

Super 739W; Braun; Frankfurt (ID = 892918) Radio
Super 739W; Braun; Frankfurt (ID = 650726) Radio Super 739W; Braun; Frankfurt (ID = 650728) Radio
Super 739W; Braun; Frankfurt (ID = 650729) Radio Super 739W; Braun; Frankfurt (ID = 484203) Radio

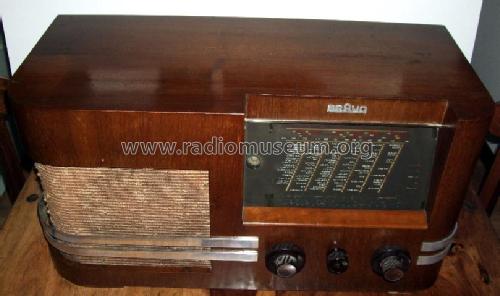

Super 739W; Braun; Frankfurt (ID = 650727) Radio Super 739W; Braun; Frankfurt (ID = 650730) Radio
Use red slider bar for more.
Super 739W; Braun; Frankfurt (ID = 650726) Radio
Braun; Frankfurt: Super 739W [Radio] ID = 650726 846x482
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 739W, Braun; Frankfurt:
ebay 170362144549, Bild mit freundlicher Genehmigung von Verkäufer thomasmerget39

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AK2 AF3 AB2 AL4 AM2 AZ11
Main principle Superheterodyne (common); ZF/IF 488 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Super 739W - Braun; Frankfurt
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 620 x 340 x 380 mm / 24.4 x 13.4 x 15 inch
Notes Braun Super 739W.
Lichtantenne.
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Price in first year of sale 272.00 RM
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
