Cambridge 98

Cambridge 98; Breville; Sydney (ID = 2426645) Radio
Utilice la barra deslizante rojo por más.
Cambridge 98; Breville; Sydney (ID = 2426645) Radio

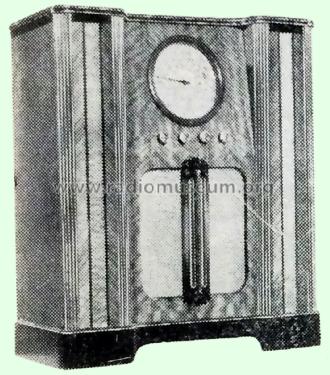

Breville; Sydney: Cambridge 98 [Radio] ID = 2426645 1400x1590
Seleccione una imagen o esquema para mostrar las miniaturas de la derecha y haga clic para descargar.
For model Cambridge 98, Breville; Sydney:
Radio Retailer of Australia, 1/5/1937.

País:  Australia
Fabricante / Marca:  Breville; Sydney
Año: 1937 Categoría: Radio - o Sintonizador pasado WW2
Válvulas 6: 6D6 6A7 6D6 75 42 80
Principio principal Superheterodino con paso previo de RF; ZF/IF 446 kHz
Gama de ondas OM y OC
Especialidades
Tensión de funcionamiento Red: Corriente alterna (CA, Inglés = AC) / 220-260 Volt
Altavoz Altavoz electrodinámico (bobina de campo) / Ø 10 inch = 25.4 cm
Potencia de salida
de Radiomuseum.org Modelo: Cambridge 98 - Breville; Sydney
Material Madera
Forma Consola en general
Anotaciones

BREVILLE'S NEW SEASON RELEASE

16 New Models

THE recent release of Breville Radio's new season's models has evoked considerable favourable comment from retailers in many parts.

This exhaustive range includes 16 models, and with various cabinet combinations, is extended to about 51 different types.

  • The price range of the extends from 18 gns. for the 5-valve dual wave mantel model, up to 39 gns. for the 7-valve dual wave console and the 5-valve dual wave vibrator type set.
  • All types except Model 96 5-valve standard dual wave, posess the Breville Ferrodine iron core I.F. coils for long distance reception, and separation of all stations.
  • Each of the Breville sets is equipped with the Mammoth 8in. glass Edgelit dial with stations of the particular State printed extra large for ease and certainty of tuning. Specially matched 8, 10 and 12 inch electro-dynamic loudspeakers provide for maximum tone.

Models New Beale & Surrey share the same chassis. The Cambridge cabinet is also used in models 92, 93, 94, 95, 96, 97, 99, 100 & 101.

SPECIAL FEATURES.

  • The A.C./D.C. series, the A.C. series, and both battery and vibrator series, have full A.V.C.
  • Every dual wave set includes 16 meter band.
  • All console sets, except those fitted in the utility consoles, have Mammoth 8in Edgelit dials.

The head office and factory of Breville radio is situated at 486 Elizabeth Street, Sydney, and it is understood that expansion of business requires additional factory space, and Breville Radio will shortly be moving into new premises.

In Victoria distribution is carried out by Breville Radio Pty. Ltd, 191 Queen Street, Melbourne; in Brisbane by O. Thomas, King House, Queen Street, Brisbane; in Adelaide by Stott and Hoare (S.A.) Ltd., 21 Grenfell Street, Adelaide; and in Perth by Stott and Hoare Typewriters Ltd., 55 William Street, Perth.

(From Radio Retailer of Australia, 14/5/1937, Page 4)

Precio durante el primer año 33.60 AUS £
Mencionado en (The) Radio Retailer of Australia (Vol. 12, No. 16 (237th Issue), 14/5/1937.)
Documentación / Esquemas (1) Australian Official Radio Service Manual AORSM (Volume 1, 1938, Page 75 (Shown as Model 99))

Modelo creado por Martin Kent. Ver en "Modificar Ficha" los participantes posteriores.



Ir al listado general de Breville; Sydney
Donde encontrará 452 modelos, 169 con imágenes y 167 con esquemas.
