Beat frequency oscillator BK1013

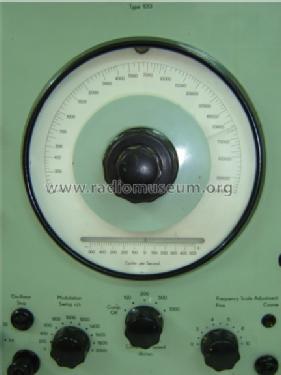

Beat frequency oscillator BK1013; Brüel & Kjær; Nærum (ID = 302816) Equipment Beat frequency oscillator BK1013; Brüel & Kjær; Nærum (ID = 302817) Equipment

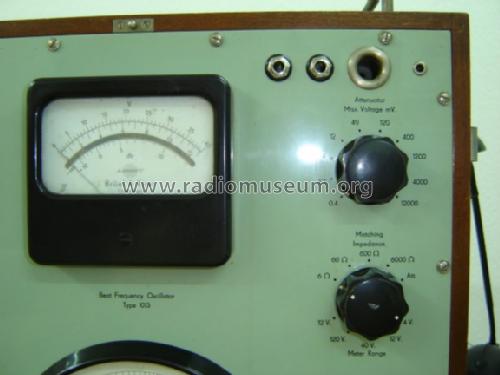

Beat frequency oscillator BK1013; Brüel & Kjær; Nærum (ID = 302818) Equipment Beat frequency oscillator BK1013; Brüel & Kjær; Nærum (ID = 302823) Equipment

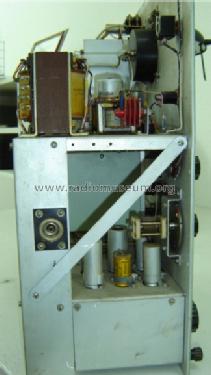

Beat frequency oscillator BK1013; Brüel & Kjær; Nærum (ID = 302825) Equipment Beat frequency oscillator BK1013; Brüel & Kjær; Nærum (ID = 302827) Equipment
Beat frequency oscillator BK1013; Brüel & Kjær; Nærum (ID = 302828) Equipment
Use red slider bar for more.
Beat frequency oscillator BK1013; Brüel & Kjær; Nærum (ID = 302816) Equipment
Brüel & Kjær; Nærum: Beat frequency oscillator BK1013 [Equipment] ID = 302816 558x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Beat frequency oscillator BK1013, Brüel & Kjær; Nærum

Country:  Denmark
Manufacturer / Brand:  Brüel & Kjær; Nærum
Year: 1959 ? Category: Service- or Lab Equipment
Valves / Tubes 11: ECC81 ECC81 ECC81 ECC81 ECC81 EF94 EF94 EF94 EAA91 EL84 0A2 EZ90
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 100; 115; 127; 150; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Beat frequency oscillator BK1013 - Brüel & Kjær; Nærum
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 400 x 500 x 200 mm / 15.7 x 19.7 x 7.9 inch
Notes Frequency range 200···200000 Hz, Accuracy ± 10 Hz. Output: 6, 60, 600, 6000 Ohm; Maximum Power: 2 Watt, 400 µV to 12,5 V; Signal Noise Ratio >70 dB; Maximum distortion 0,3 % at 2000···20000 Hz, 0,7 % to 1 % below or above.
Net weight (2.2 lb = 1 kg) 21 kg / 46 lb 4.1 oz (46.256 lb)
Mentioned in -- Original-techn. papers.

Model page created by Wolfgang Ebsen. See "Data change" for further contributors.
