205-E Georgian, series 200E

205-E Georgian, series 200E ; Capehart Corp.; Fort (ID = 1384840) Radio
205-E Georgian, series 200E ; Capehart Corp.; Fort (ID = 1303034) Radio 205-E Georgian, series 200E ; Capehart Corp.; Fort (ID = 1303030) Radio
205-E Georgian, series 200E ; Capehart Corp.; Fort (ID = 1303018) Radio 205-E Georgian, series 200E ; Capehart Corp.; Fort (ID = 1303040) Radio
205-E Georgian, series 200E ; Capehart Corp.; Fort (ID = 1303037) Radio 205-E Georgian, series 200E ; Capehart Corp.; Fort (ID = 1303028) Radio
205-E Georgian, series 200E ; Capehart Corp.; Fort (ID = 1303017) Radio 205-E Georgian, series 200E ; Capehart Corp.; Fort (ID = 1303029) Radio
205-E Georgian, series 200E ; Capehart Corp.; Fort (ID = 1303031) Radio 205-E Georgian, series 200E ; Capehart Corp.; Fort (ID = 1303032) Radio
Use red slider bar for more.
205-E Georgian, series 200E ; Capehart Corp.; Fort (ID = 1303034) Radio
Capehart Corp.; Fort: 205-E Georgian, series 200E [Radio] ID = 1303034 933x1244
Select picture or schematic to display from thumbnails on the right and click for download.
For model 205-E Georgian, series 200E, Capehart Corp.; Fort Wayne, IN - see also Farnsworth:
Picture from Antiqueradio.com Gallery, uploaded by kdtbird

Country:  United States of America (USA)
Manufacturer / Brand:  Capehart Corp.; Fort Wayne, IN - see also Farnsworth
Year: 1936/1937 perfect model Category: Broadcast Receiver - or past WW2 Tuner

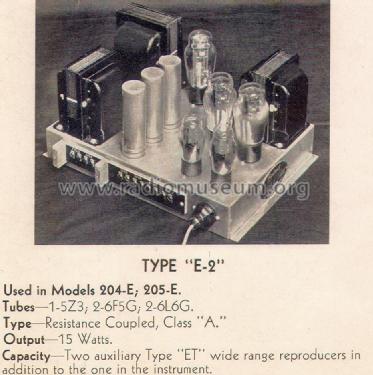

Valves / Tubes 12: 6K7 6K7 6Q7 6L7 6G5 6C5 5Z4 6F5G 6F5G 6L6G 6L6G 5Z3
Main principle Superhet with RF-stage; ZF/IF 465 kHz
Wave bands Broadcast, Short Wave(s) and Police.

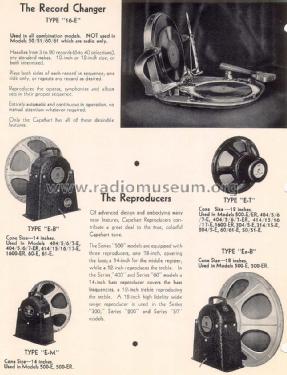

Details Record-Changer, both sides!
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: 205-E Georgian, series 200E - Capehart Corp.; Fort Wayne, IN
Material Wooden case
Shape Console with any shape - in general
Notes

205E Georgian, series 200E
The Capehart model 200 series were introduced for season 1936/37 as suffix "E" and 1937/38 as "F". See here the "Common information for the Capehart model pages for the 1930s and 1940s".
According to the Baumbach book, there are only the models 202E Georgian, 204E Modern, 204F Modern and 205E Georgian, but we found also a model 203E Georgian and an ad for "200" Gainsborough with the same receiver as series 300 but differing in cabinet and modified form of the record changer.
The question of the chassis for the 200 series is outlined in this text.
Short overviews with links like this overview - for 100 Series, 200 Series, 300 Series, 400 Series, 500 Series and plain cabinets 1600 and 160 (and accessories) - see in these links.



Price in first year of sale 680.00 $
Mentioned in Rider's Perpetual, Volume 7 = 1936 and before (Capehart 7-2 and 7-3)
Literature/Schematics (2) The Incomparable Capehart (Capehart Style Chart)

Model page created by Ernst Erb. See "Data change" for further contributors.
