205F Georgian, series 200F Ch= W-921
- United States of America (USA)
- Manufacturer / Brand
- Capehart Corp.; Fort Wayne, IN - see also Farnsworth
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- Number of Tubes
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC)
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Wooden case
- from Radiomuseum.org
- Model: 205F Georgian, series 200F Ch= W-921 - Capehart Corp.; Fort Wayne, IN
- Console with any shape - in general
The Capehart model 200 series were introduced for season 1936/37 as suffix "E" and 1937/38 as "F". See here the "Common information for the Capehart model pages for the 1930s and 1940s".
According to Baumbach book, there are only the models 202E Georgian, 204E Modern, 204F Modern and 205E Georgian, but we found also this model 205F in Capehart's sales brochure, but also the 203E Georgian and an ad for "200" Gainsborough with the same receiver as 300 but differing in cabinet and modified form of the record changer.
The question of the chassis for the 200 series is outlined in this text.
Short overviews with links like this overview - for 100 Series, 200 Series, 300 Series, 400 Series, 500 Series and plain cabinets 1600 and 160 (and accessories) - see in these links.
This model 205F Georgian uses ONE chassis only and has the same alignment procedure as for model 110-G, shown on page 10-4 of Rider's volume X, the only exception being that model 200-F uses a 6L7 first detector instead of a 6A8. There is no record changer!
Tubes according to Rider's 8-1 for chassis W-921, drawn August 14, 1937: 6K7 RF, 6C5 osc, 6L7 mixer, 6K7 IF, 6G5 mag.eye, 6K7 2nd IF, 6H6 Det, 6N7 AF amp,, 6C5, 2 x 6V6 push-pull output, 5Z3 rect.
- External source of data

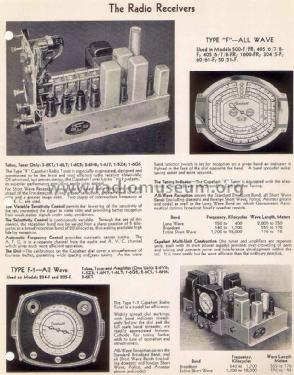

- Capehart sales brochure
