- United States of America (USA)
- Manufacturer / Brand
- Capehart Corp.; Fort Wayne, IN - see also Farnsworth
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- Number of Tubes
- Valves / Tubes
- 6K7 6K7 6L7 6K7 6G5 6K7 6H6 6K7 6H6 6J7 6C5 5Z4 6N7G 6C5G 6F6G 6L6G 6L6G 83 6F6G 6L6G 6L6G 5Z3
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- 2 Loudspeakers
- Wooden case
- from Radiomuseum.org
- Model: 60F Modern - Capehart Corp.; Fort Wayne, IN
- Console with any shape - in general
The models 50 with cabinet Modern and 51 with the cabinet 18th Century have chassis from the 300 series but less the changer and show a smaller cabinet. They were made for three seasons only as 50D Modern, 50E Modern and 50F modern, 51D 18th Century, 51E 18th Century and 51F 18th Century.
The same is 60-D, 60-E and 60-F with cabinet modern.
Also models 60 Modern and 61 18th Century were made without changers, for season 1935/36 as 60-D and 61-D (for $ 495), for season 1936/37 as 60-E and 61-E and for season F but all with the bigger chassis series 400. To all of those one could add the conceiled Record Changer model 160.
Chassis Series 400-F for LW, broadcast and two SW bands:

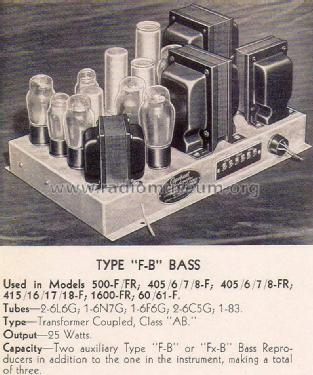

Tuner with the following 12 tubes: 6K7, 6K7, 6L7, 6K7, 6G5, 6K7, 6H6, 6K7, 6H6, 6J7, 6C5, 5Z4 - according to Rider's 8; Bass Amplifier with 6N7G, 2 x 6C5G, 6F6G, 2 x 6L6G and 83 (25 watts, driving the 18 inch speaker, schematic N-920) and a Treble Amplifier (schematic N-919) with 6F6G, 2 x 6L6G and 5Z3. See also the rare model 500-FR which has on top of that "Middle Register Amplifier" with the same tubes as the "treble amplifier".
The Capehart 400 series were introduced for season 1931/32 without suffix, followed by A 1932/33, B 1933/34 etc. through to season 1948-50. See here the "Common information for the Capehart model pages for the 1930s and 1940s".
- External source of data
- Capehart sales brochure
- Model page created by Ernst Erb. See "Data change" for further contributors.
- Other Models
Here you find 230 models, 147 with images and 91 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Capehart Corp.; Fort Wayne, IN - see also Farnsworth
