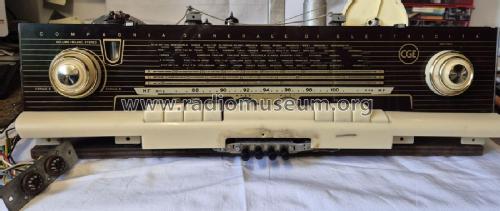

Armonium Stereofonico 76010
CGE, Compagnia Generale di Elettricità; Milano
- Country
- Italy
- Manufacturer / Brand
- CGE, Compagnia Generale di Elettricità; Milano
- Year
- 1960 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 190545
Catalogo ANIE 1960-61
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-280 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 3.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Armonium Stereofonico 76010 - CGE, Compagnia Generale di
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 640 x 270 x 340 mm / 25.2 x 10.6 x 13.4 inch
- Notes
- Riproduzione stereofonica con due altoparlanti supplementari in cassetta.
- Net weight (2.2 lb = 1 kg)
- 13 kg / 28 lb 10.1 oz (28.634 lb)
- Price in first year of sale
- 96,500.00 ITL
- Mentioned in
- Catalogo ANIE (1960-61)
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
