Fono Audiola Ste 8608

Fono Audiola Ste 8608; CGE - Compagnia (ID = 1042026) Radio

Fono Audiola Ste 8608; CGE - Compagnia (ID = 1042027) Radio
Fono Audiola Ste 8608; CGE - Compagnia (ID = 194310) Radio Fono Audiola Ste 8608; CGE - Compagnia (ID = 194314) Radio
Fono Audiola Ste 8608; CGE - Compagnia (ID = 194311) Radio Fono Audiola Ste 8608; CGE - Compagnia (ID = 194312) Radio
Fono Audiola Ste 8608; CGE - Compagnia (ID = 194313) Radio Fono Audiola Ste 8608; CGE - Compagnia (ID = 194315) Radio
Fono Audiola Ste 8608; CGE - Compagnia (ID = 941563) Radio Fono Audiola Ste 8608; CGE - Compagnia (ID = 941564) Radio
Fono Audiola Ste 8608; CGE - Compagnia (ID = 941565) Radio Fono Audiola Ste 8608; CGE - Compagnia (ID = 941566) Radio
Use red slider bar for more.
Fono Audiola Ste 8608; CGE - Compagnia (ID = 194310) Radio
CGE - Compagnia: Fono Audiola Ste 8608 [Radio] ID = 194310 640x480

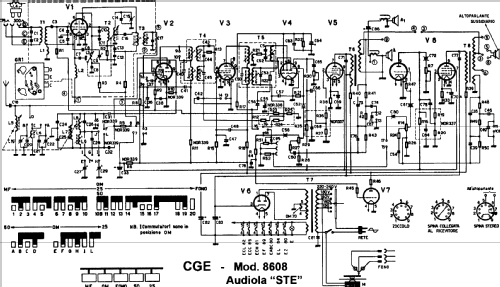

Select picture or schematic to display from thumbnails on the right and click for download.
For model Fono Audiola Ste 8608, CGE - Compagnia Generale di Elettricità; Milano

Country:  Italy
Manufacturer / Brand:  CGE - Compagnia Generale di Elettricità; Milano
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF89 ECL82 DM70 EABC80 EL84 EZ80
Main principle Superheterodyne (common)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 120, 140, 160, 180, 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Fono Audiola Ste 8608 - CGE - Compagnia Generale di
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 430 x 300 x 370 mm / 16.9 x 11.8 x 14.6 inch
Notes Bande OC: 25mt e 50mt
External source of data Collezione personale.
Source of data Guida Pratica Antique Radio (1) 1999

Model page created by Marco Gilardetti. See "Data change" for further contributors.



All listed radios etc. from CGE - Compagnia Generale di Elettricità; Milano
Here you find 289 models, 231 with images and 214 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
