Musical Luxe 4597

Musical Luxe 4597; CGE - Compagnia (ID = 400151) Radio

Musical Luxe 4597; CGE - Compagnia (ID = 400152) Radio
Musical Luxe 4597; CGE - Compagnia (ID = 316839) Radio Musical Luxe 4597; CGE - Compagnia (ID = 316841) Radio
Musical Luxe 4597; CGE - Compagnia (ID = 316840) Radio Musical Luxe 4597; CGE - Compagnia (ID = 316842) Radio

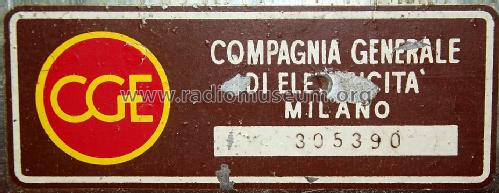

Musical Luxe 4597; CGE - Compagnia (ID = 1493472) Radio Musical Luxe 4597; CGE - Compagnia (ID = 1493474) Radio
Musical Luxe 4597; CGE - Compagnia (ID = 1493476) Radio Musical Luxe 4597; CGE - Compagnia (ID = 1493479) Radio
Musical Luxe 4597; CGE - Compagnia (ID = 1493481) Radio Musical Luxe 4597; CGE - Compagnia (ID = 1493482) Radio
Use red slider bar for more.
Musical Luxe 4597; CGE - Compagnia (ID = 316839) Radio
CGE - Compagnia: Musical Luxe 4597 [Radio] ID = 316839 574x410
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musical Luxe 4597, CGE - Compagnia Generale di Elettricità; Milano:
Foto per cortesia del venditore ebay gabri.g - #290107282959

Country:  Italy
Manufacturer / Brand:  CGE - Compagnia Generale di Elettricità; Milano
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-275 Volt
Loudspeaker 2 Loudspeakers
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Musical Luxe 4597 - CGE - Compagnia Generale di
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 350 x 210 mm / 19.7 x 13.8 x 8.3 inch
Notes

Due altoparlanti magnetodinamici, rispettivamente di diametro 262×185 mm (ellittico) e 100 mm (circolare).

Net weight (2.2 lb = 1 kg) 8.2 kg / 18 lb 1 oz (18.062 lb)
Price in first year of sale 49'000.00 LIT
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in -- Original prospect or advert
Literature/Schematics (1) -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.
