• Country
• United States of America (USA)

• Manufacturer / Brand
• Clinton Mfg.Co.; Chicago, IL

• Year
• 1937 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 188098

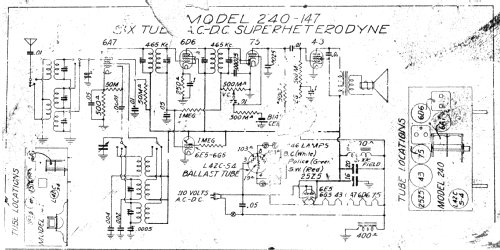

Click on the schematic thumbnail to request the schematic as a free document.

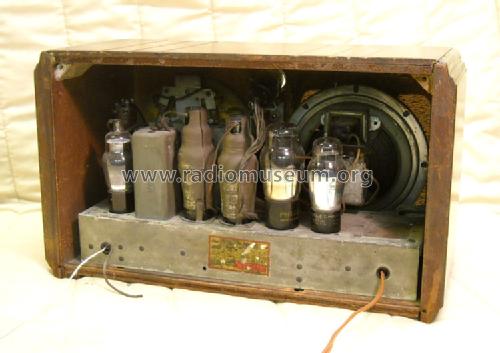

• Number of Tubes
• 6

• Valves / Tubes
• 6A7 6D6 75 43 6E5 or 6G5 25Z5

• Number of Transistors

• Semiconductors
• L42C-54

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Kent 147 - Clinton Mfg.Co.; Chicago, IL

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 16 x 9 x 7 inch / 406 x 229 x 178 mm

• Notes

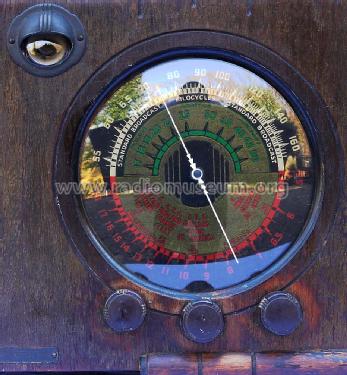

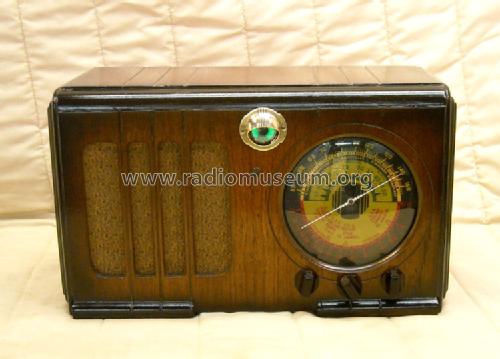

• The model Kent 147 is a six tube AC/DC superheterodyne with three bands. In the scale, white is BC, green "Police" and red Short Waves.

  The 147 uses a special L42C-54 ballast tube with an extra resistor to power the green and red lamps for police and shortwave bands.  If a standard L42C ballast is used, connect a 20 ohm, 2 watt, resistor between pins 4 and 8 on the ballast tube socket.  The radio will operate with a standard L42C ballast but the green and red lamps will not light unless the resistor is added.

  This model is very similar if not identical to the Clinton model 147.

• Source of data
• -- Schematic

• Literature/Schematics (1)
• Gernsback Official Radio Service Manual (Vol 7)

• Author
• Model page created by John Backscheider. See "Data change" for further contributors.

• Other Models

• Here you find 135 models, 81 with images and 47 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Clinton Mfg.Co.; Chicago, IL
