• Year
  • 1955 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 145329
    • Brand: Defiant

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz; 4 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • AC/DC-set / 195-255 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Defiant MSH755 - Co-operative Wholesale Society
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

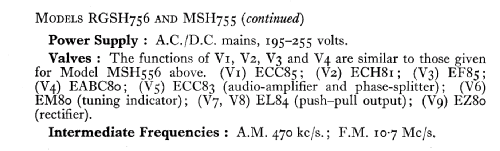

  • The description in R&TVS (see uploaded documents) refers to MW, LW and FM only, whereas the circuit diagram shows MW, LW, SW and FM.

  • Source of data
  • -- Schematic
  • Circuit diagram reference
  • Radio and TV Servicing books (R&TVS) book
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
