• Country
• Austria

• Manufacturer / Brand
• Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8282

• • alternative name: Hekaphon

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EAF42 EAF42 EL41 EM34 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Ready for FM, has Broadcast, Long Wave, several Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org

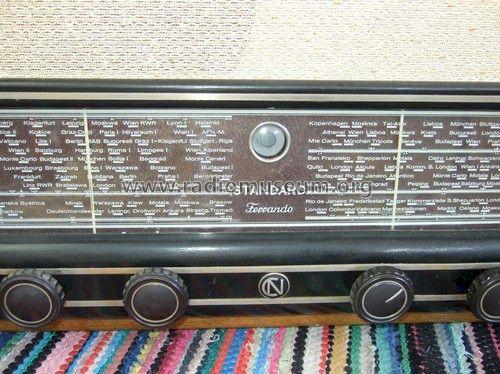

• Model: Ferrando W 317-1 - Czeija, Nissl & Co., Standard,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 525 x 366 x 255 mm / 20.7 x 14.4 x 10 inch

• Notes
• Für UKW mit 320-1

• Net weight (2.2 lb = 1 kg)
• 11.3 kg / 24 lb 14.2 oz (24.89 lb)

• Price in first year of sale
• 2,190.00 ATS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch
