876W 4 Alu-Streben

• Country
• Germany

• Manufacturer / Brand
• DeTeWe

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 251687

• • alternative name: Deutsche Telephonwerke GmbH; || Deutsche Tel-w. & und Kabelind. || DTW

• Picture

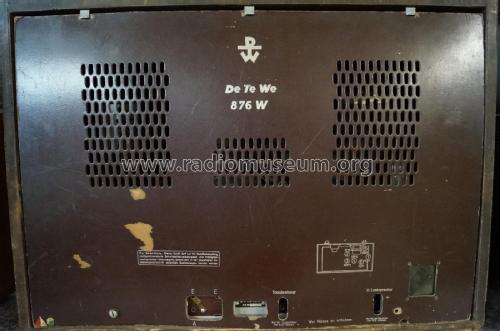

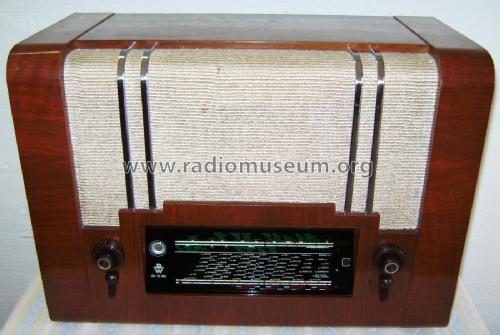

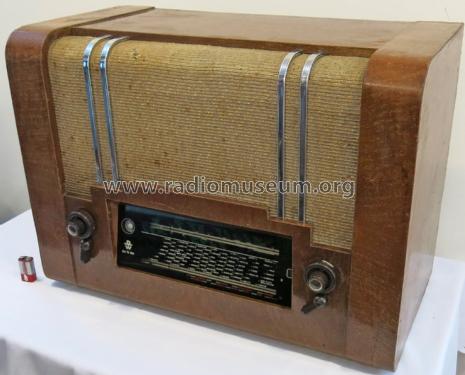

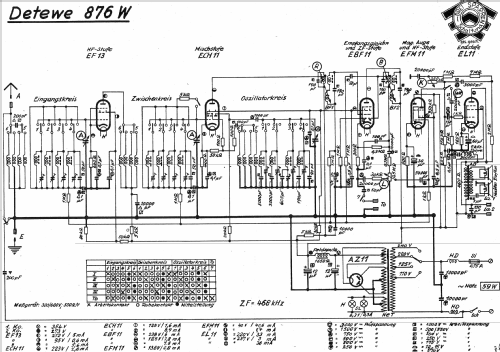

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF13 ECH11 EBF11 EL11 EFM11 AZ11

• Main principle
• Superhet with RF-stage; ZF/IF 468 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

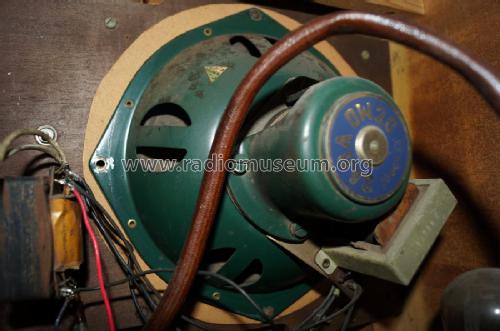

• Loudspeaker
• 2 Loudspeakers / Ø 25 cm = 9.8 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 876W [4 Alu-Streben] - DeTeWe

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 640 x 460 x 325 mm / 25.2 x 18.1 x 12.8 inch

• Notes

• ist Nora W78

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Price in first year of sale
• 360.00 RM

• Source of data
• Handbuch WDRG 1938

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Funkgeschichte der GFGF (8754)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
