Pampas SA5230

Pampas SA5230; Dux Radio AB; (ID = 1618139) Radio

Pampas SA5230; Dux Radio AB; (ID = 1618140) Radio
Pampas SA5230; Dux Radio AB; (ID = 1618075) Radio
Use red slider bar for more.
Pampas SA5230; Dux Radio AB; (ID = 1618075) Radio

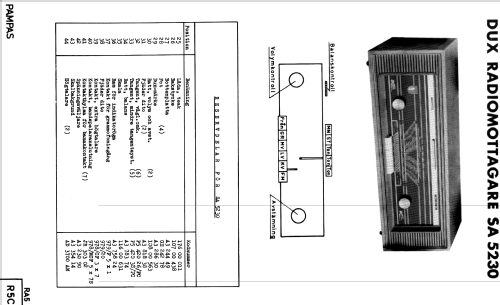

Dux Radio AB;: Pampas SA5230 [Radio] ID = 1618075 933x425
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pampas SA5230, Dux Radio AB; Stockholm:
Aus den Hersteller-Unterlagen

Country:  Sweden
Manufacturer / Brand:  Dux Radio AB; Stockholm
Year: 1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: ECC85 ECH81 EF89 EBF89 EM80 EAA91 ECC83 EL84 EL84 EZ81
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers / Ø 15 cm = 5.9 inch
Power out
from Radiomuseum.org Model: Pampas SA5230 - Dux Radio AB; Stockholm
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 665 x 245 x 240 mm / 26.2 x 9.6 x 9.4 inch
Notes

Lautsprecher-Impedanz 800 Ohm.

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Mentioned in -- Original-techn. papers.

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
