• Year
  • 1948 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 337221

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 135; 150; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

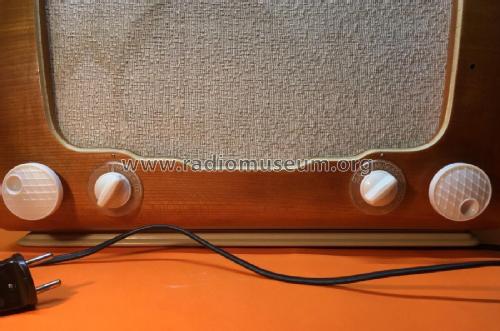

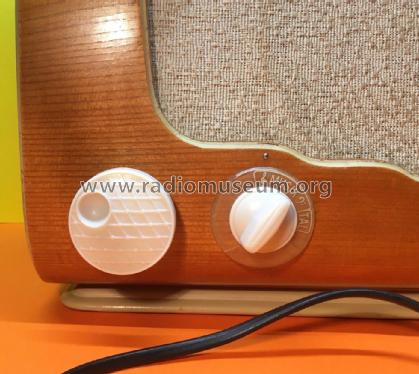

  • Model: V295 - Dux Radio AB; Stockholm
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 480 x 345 x 240 mm / 18.9 x 13.6 x 9.4 inch
  • Notes
  • Dux V295 is almost the same as Dux V296. Same schematic but some components differ.

    Wavebands:
     -  LW: 700 - 2000 m
     -  MW: 190 - 600 m
     -  SW1: 15.4 - 20.1 m
     -  SW2: 20 - 26 m
     -  SW3: 24.8 - 32.4 m
     -  SW4: 32.4 - 42.2 m
     -  SW5: 39.5 - 51.5 m.

  • Net weight (2.2 lb = 1 kg)
  • 10 kg / 22 lb 0.4 oz (22.026 lb)
  • Mentioned in
  • - - Manufacturers Literature (Dux technical description 1948/49)
  • Author
  • Model page created by Lars Nord. See "Data change" for further contributors.
