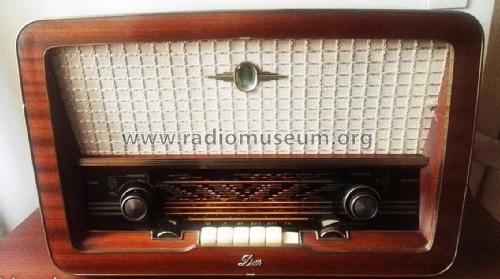

V373 ; Dux Radio AB; (ID = 486485) Radio
Dux Radio AB;: V373 [Radio] ID = 486485 800x555
Select picture or schematic to display from thumbnails on the right and click for download.
For model V373, Dux Radio AB; Stockholm

Country:  Sweden
Manufacturer / Brand:  Dux Radio AB; Stockholm
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EBF80 EF89 EABC80 EL84 EM80 EZ80
schematic requested
Main principle Superheterodyne (common); ZF/IF 452/10850 kHz
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 2 Loudspeakers
Power out 4 W (unknown quality)
from Radiomuseum.org Model: V373 - Dux Radio AB; Stockholm
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 540 x 340 x 240 mm / 21.3 x 13.4 x 9.4 inch
Notes Variable AM-bandwidth: Narrow/Broad. Built-in frame antenna for MW/LW. The second IF-stage for FM only.
Price in first year of sale 499.00 SEK
Source of data - - Data from my own collection

Model page created by Lennart Nilsson. See "Data change" for further contributors.
