AT-Super 660Wk3 mit ECH11, Skala ohne Rahmen

AT-Super 660Wk3; EAW, Elektro- (ID = 377580) Radio
AT-Super 660Wk3; EAW, Elektro- (ID = 50819) Radio AT-Super 660Wk3; EAW, Elektro- (ID = 50820) Radio
AT-Super 660Wk3; EAW, Elektro- (ID = 50821) Radio AT-Super 660Wk3; EAW, Elektro- (ID = 50822) Radio
AT-Super 660Wk3; EAW, Elektro- (ID = 159125) Radio AT-Super 660Wk3; EAW, Elektro- (ID = 159123) Radio
AT-Super 660Wk3; EAW, Elektro- (ID = 159124) Radio
Use red slider bar for more.
AT-Super 660Wk3; EAW, Elektro- (ID = 50819) Radio

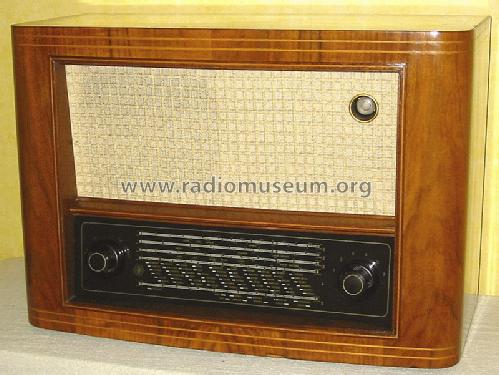

EAW, Elektro-: AT-Super 660Wk3 [Radio] ID = 50819 800x601
Select picture or schematic to display from thumbnails on the right and click for download.
For model AT-Super 660Wk3 mit ECH11, Skala ohne Rahmen, EAW, Elektro-Apparate-Werke, VEB, (ex AEG Treptow); Berlin-Treptow (Ostd.)

Country:  Germany
Manufacturer / Brand:  EAW, Elektro-Apparate-Werke, VEB, (ex AEG Treptow); Berlin-Treptow (Ostd.)
alternative name

AEG Treptow (AT, EAT); Berlin || EAT (El.-App. Treptow)
Brand
AT Apparatewerk Treptow
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH11 EBF11 EF11 EL11 EM11 AZ11 or
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: AT-Super 660Wk3 [mit ECH11, Skala ohne Rahmen] - EAW, Elektro-Apparate-Werke,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 580 x 410 x 285 mm / 22.8 x 16.1 x 11.2 inch
Net weight (2.2 lb = 1 kg) 13.5 kg / 29 lb 11.8 oz (29.736 lb)
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from EAW, Elektro-Apparate-Werke, VEB, (ex AEG Treptow); Berlin-Treptow (Ostd.)
Here you find 83 models, 73 with images and 36 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.


Collection of a member from D
Collection of a member from NL




Forum contributions about this model
EAW, Elektro-: AT-Super 660Wk3
Threads: 1 | Posts: 1
Hits: 1335     Replies: 0
eaw: AT660WK3, Reparaturhinweis
Eilert Menke
01.Apr.04
  1 Zur Beachtung: Skala ist am Gehäuse - nicht am Chassis - befestigt. Vor Ausbau des Chassis Knöpfe abbauen, ansonsten Bruchgefahr! Der Skalenzeiger ist ebenfalls zuvor vom Seil zu lösen (Zugang nach Abnahme des Bodendeckels).
