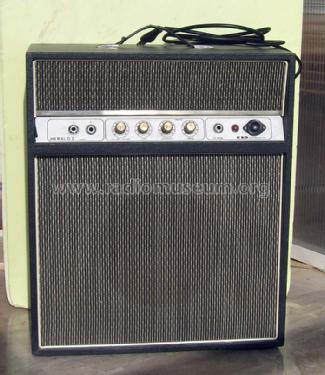

Herald 1 ; EKO Music Group Spa; (ID = 1606990) Ampl/Mixer
EKO Music Group Spa;: Herald 1 [Ampl/Mixer] ID = 1606990 700x807
Select picture or schematic to display from thumbnails on the right and click for download.
For model Herald 1, EKO Music Group Spa; Recanati, Italia

Country:  Italy
Manufacturer / Brand:  EKO Music Group Spa; Recanati, Italia
Year: 1975 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 4: EL84 EL84 ECC83 ECC83
Semiconductors (the count is only for transistors) 2:
Main principle Audio-Amplification
Wave bands - without
Details Guitar Amplifier
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 160; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 25 cm = 9.8 inch
Power out 10 W (undistorted)
from Radiomuseum.org Model: Herald 1 - EKO Music Group Spa; Recanati,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 460 x 540 x 240 mm / 18.1 x 21.3 x 9.4 inch
Notes

Amplificatore per chitarra.

Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)

Model page created by Camillo Spinelli. See "Data change" for further contributors.
