Ensign 7 Dual Wave

Ensign Radio, The Electric Lamphouse Ltd.; Wellington

Data

Forum

Pictures

Collections

Country
New Zealand-Aotearoa

Manufacturer / Brand
Ensign Radio, The Electric Lamphouse Ltd.; Wellington

Year
1946

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
346538

Schematics

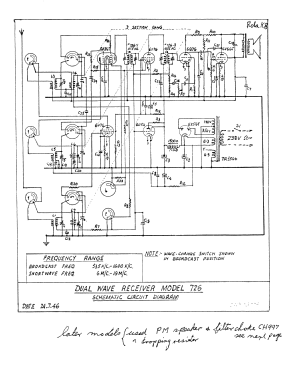

Ensign 7 ; Ensign Radio, The (ID = 2898562) Radio — Ensign Radio, The Ensign 7 (3)

Ensign 7 ; Ensign Radio, The (ID = 2898563) Radio — Ensign Radio, The Ensign 7 (3)

Ensign 7 ; Ensign Radio, The (ID = 2898564) Radio — Ensign Radio, The Ensign 7 (3)

Ensign 7 ; Ensign Radio, The (ID = 2898565) Radio — Ensign Radio, The Ensign 7 (3)

Ensign 7 ; Ensign Radio, The (ID = 2898566) Radio — Ensign Radio, The Ensign 7 (3)

Ensign 7 ; Ensign Radio, The (ID = 2898567) Radio — Ensign Radio, The Ensign 7 (3)

Ensign 7 ; Ensign Radio, The (ID = 2898568) Radio — Ensign Radio, The Ensign 7 (3)

Ensign 7 ; Ensign Radio, The (ID = 2898569) Radio — Ensign Radio, The Ensign 7 (3)

Ensign 7 ; Ensign Radio, The (ID = 2898560) Radio — Ensign Radio, The Ensign 7 (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
7

Valves / Tubes
6U7G 6K8GT 6U7G 6Q7G 6U5G 6V6GT 6X5GT

Main principle
Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

Tuned circuits
7 AM circuit(s)

Wave bands
Broadcast and Short Wave (SW).

Power type and voltage
Alternating Current supply (AC) / 230 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

Power out
4 W (unknown quality)

Material
Wooden case

from Radiomuseum.org
Model: Ensign 7 [Dual Wave] - Ensign Radio, The Electric

Shape
Tablemodel, with any shape - general.

Dimensions (WHD)
19 x 13.5 x 11 inch / 483 x 343 x 279 mm

Notes
7-Valve (including magic eye) superhet with RF stage dual wave table model receiver.

8" Concert dynamic EM speaker.

Manufactured by Collier & Beale Ltd for Electric Lamp House Ltd.

See also Gulbransen 726 and Cromwell 726.

Price in first year of sale
44.25 NZ £
