Operette 8/57W

Operette 8/57W; Funk- und (ID = 12182) Radio

Operette 8/57W; Funk- und (ID = 12183) Radio

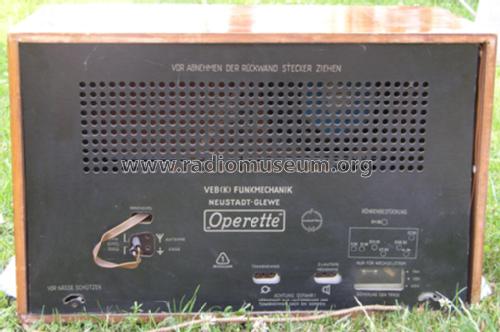

Operette 8/57W; Funk- und (ID = 1172435) Radio Operette 8/57W; Funk- und (ID = 1172436) Radio
Use red slider bar for more.
Operette 8/57W; Funk- und (ID = 1172435) Radio
Funk- und: Operette 8/57W [Radio] ID = 1172435 454x378
Select picture or schematic to display from thumbnails on the right and click for download.
For model Operette 8/57W, Funk- und Feinmechanik Neustadt/Glewe, VEB(K) (Ostd.):
unbekannte Quelle

Country:  Germany
Manufacturer / Brand:  Funk- und Feinmechanik Neustadt/Glewe, VEB(K) (Ostd.)
alternative name

VEB(K) Funkmechanik; Neustad
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EC92 EC92 ECH81 EF85 EM80 EABC80 EL84 EZ80
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Operette 8/57W - Funk- und Feinmechanik
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes 5 Klangtasten; drei Gehäusevarianten
Price in first year of sale 448.00 DM
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 3


All listed radios etc. from Funk- und Feinmechanik Neustadt/Glewe, VEB(K) (Ostd.)
Here you find 36 models, 31 with images and 20 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
