• Year
  • 1965/1966
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 14638
    • alternative name: VEB(K) Funkmechanik; Neustad

Click on the schematic thumbnail to request the schematic as a free document.

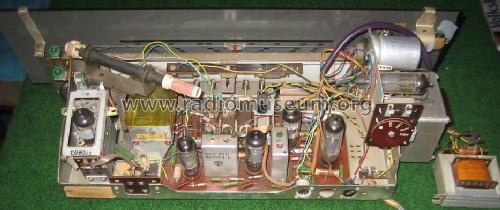

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Saalburg 5370C - Funk- und Feinmechanik
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 580 x 280 x 225 mm / 22.8 x 11 x 8.9 inch
  • Notes
  • Exportgerät , Chassis gleich "Saalburg 5170" aber UKW bis 104 MHz und feststehende Ferritantenne. Unterschiede zwischen den Versionen A, B und C nur bezüglich UKW-Frequenzbereich und mit/ohne Ferritantenne.

    Übernahme der Produktion aus Stern-Radio Sonneberg mit dem Standardchassis 5170

  • Net weight (2.2 lb = 1 kg)
  • 8.5 kg / 18 lb 11.6 oz (18.722 lb)
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers. (Kundendienst- und Werkstattheft)
  Serviceanleitung 5044 KB
