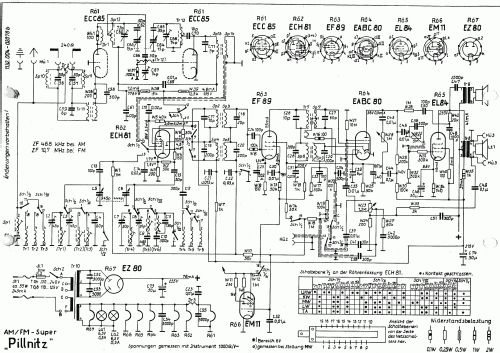

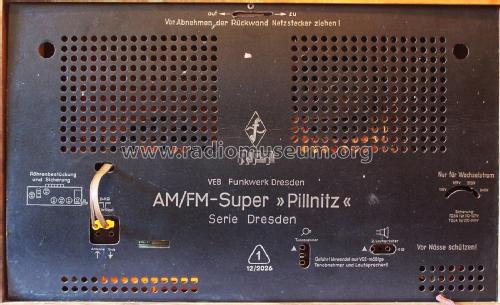

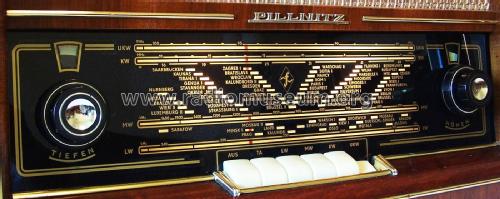

Pillnitz ; Funkwerk Dresden, (ID = 1842749) Radio
Funkwerk Dresden,: Pillnitz [Radio] ID = 1842749 1400x1033
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pillnitz, Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)

Country:  Germany
Manufacturer / Brand:  Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 468 kHz

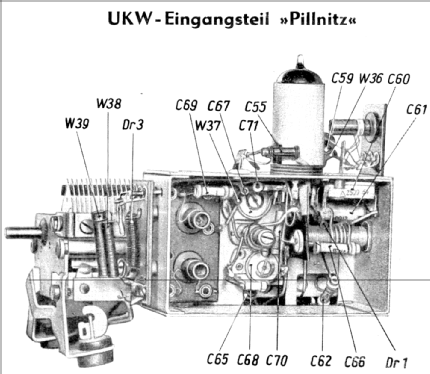

Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 2 Loudspeakers / Ø 20 cm = 7.9 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Pillnitz - Funkwerk Dresden, VEB, RFT
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 630 x 415 x 310 mm / 24.8 x 16.3 x 12.2 inch
Notes 2 Gehäuseausführungen getrennte Höhen- und Tiefenreglung mit optischer Anzeige; innendipol; Zweikanalgegenkopplung; 3-D-Ton
Net weight (2.2 lb = 1 kg) 17 kg / 37 lb 7.1 oz (37.445 lb)
Price in first year of sale 573.00 DM
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

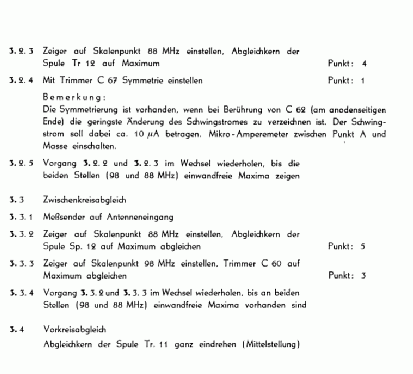

Mentioned in -- Original-techn. papers. (Radio und Fernsehen 6/1956)
