Markgraf F101

Markgraf F101; Graetz, Altena (ID = 828767) Television

Markgraf F101; Graetz, Altena (ID = 828768) Television

Markgraf F101; Graetz, Altena (ID = 828765) Television

Markgraf F101; Graetz, Altena (ID = 828766) Television

Markgraf F101; Graetz, Altena (ID = 893909) Television

Markgraf F101; Graetz, Altena (ID = 893910) Television

Markgraf F101; Graetz, Altena (ID = 893911) Television

Markgraf F101; Graetz, Altena (ID = 893912) Television

Markgraf F101; Graetz, Altena (ID = 893913) Television

Markgraf F101; Graetz, Altena (ID = 893914) Television
Markgraf F101; Graetz, Altena (ID = 2562889) Television Markgraf F101; Graetz, Altena (ID = 2562890) Television
Markgraf F101; Graetz, Altena (ID = 2562891) Television Markgraf F101; Graetz, Altena (ID = 1566930) Television
Markgraf F101; Graetz, Altena (ID = 293809) Television Markgraf F101; Graetz, Altena (ID = 1566920) Television
Markgraf F101; Graetz, Altena (ID = 1566925) Television Markgraf F101; Graetz, Altena (ID = 1566927) Television
Markgraf F101; Graetz, Altena (ID = 1566929) Television
Use red slider bar for more.
Markgraf F101; Graetz, Altena (ID = 2562889) Television
Graetz, Altena: Markgraf F101 [Television] ID = 2562889 1200x1044

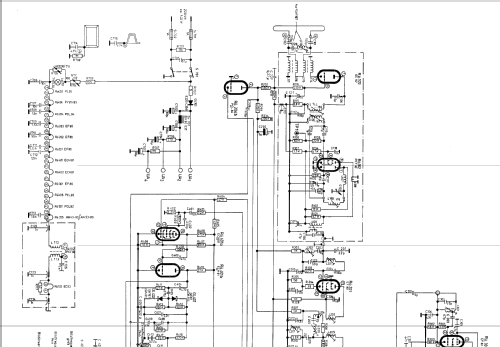

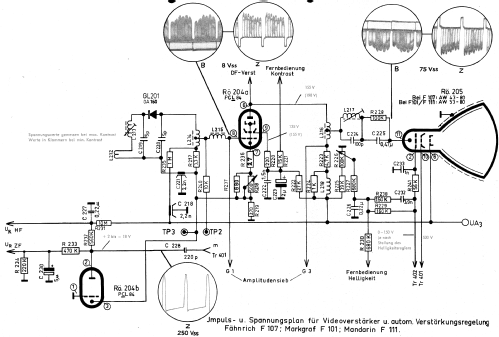

Select picture or schematic to display from thumbnails on the right and click for download.
For model Markgraf F101, Graetz, Altena (Westfalen):
Q: Graetz, Produkt-Katalog 1958

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1958/1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 15: EC92 PCF80 EF80 PCL84 PCL82 ECH81 PL36 PY81 EY86 AW53-80
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Markgraf F101 - Graetz, Altena Westfalen
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 610 x 520 x 460 mm / 24 x 20.5 x 18.1 inch
Notes Technische Daten wie Fähnrich F107, jedoch mit 53-cm-Bildröhre.
Net weight (2.2 lb = 1 kg) 35 kg / 77 lb 1.5 oz (77.093 lb)
Price in first year of sale 898.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1958/59
