Melodia 4R/218

Melodia 4R/218; Graetz, Altena (ID = 579009) Radio

Melodia 4R/218; Graetz, Altena (ID = 331596) Radio

Melodia 4R/218; Graetz, Altena (ID = 331597) Radio

Melodia 4R/218; Graetz, Altena (ID = 331598) Radio

Melodia 4R/218; Graetz, Altena (ID = 331599) Radio

Melodia 4R/218; Graetz, Altena (ID = 579058) Radio

Melodia 4R/218; Graetz, Altena (ID = 579063) Radio

Melodia 4R/218; Graetz, Altena (ID = 579069) Radio

Melodia 4R/218; Graetz, Altena (ID = 1898238) Radio

Melodia 4R/218; Graetz, Altena (ID = 1898239) Radio
Melodia 4R/218; Graetz, Altena (ID = 388936) Radio Melodia 4R/218; Graetz, Altena (ID = 388937) Radio
Melodia 4R/218; Graetz, Altena (ID = 388938) Radio Melodia 4R/218; Graetz, Altena (ID = 17812) Radio
Melodia 4R/218; Graetz, Altena (ID = 17813) Radio Melodia 4R/218; Graetz, Altena (ID = 211420) Radio
Melodia 4R/218; Graetz, Altena (ID = 211421) Radio Melodia 4R/218; Graetz, Altena (ID = 211424) Radio
Melodia 4R/218; Graetz, Altena (ID = 211426) Radio Melodia 4R/218; Graetz, Altena (ID = 330236) Radio
Use red slider bar for more.
Melodia 4R/218; Graetz, Altena (ID = 388936) Radio
Graetz, Altena: Melodia 4R/218 [Radio] ID = 388936 643x460
Select picture or schematic to display from thumbnails on the right and click for download.
For model Melodia 4R/218, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF85 EABC80 EM80 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220/240 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Melodia 4R/218 - Graetz, Altena Westfalen
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 624 x 392 x 280 mm / 24.6 x 15.4 x 11 inch
Notes

Bandbreite schaltbar. Ferritantenne drehbar.

7 Drucktasten.

Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Price in first year of sale 358.00 DM
External source of data Wiesmüller
Source of data HdB d.Rdf-& Ferns-GrH 1955/56
Mentioned in Katalog Thiele,Helmstedt 1955/56 (Rundfunk-Phono-Fernseh-Katalog S. 21)
Literature/Schematics (1) Lange, Schaltungen der Funkindustrie (Band 3, S. 510 f.)

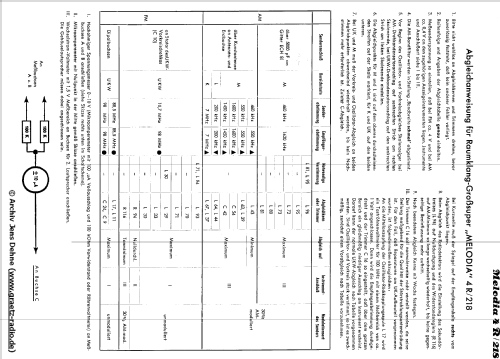

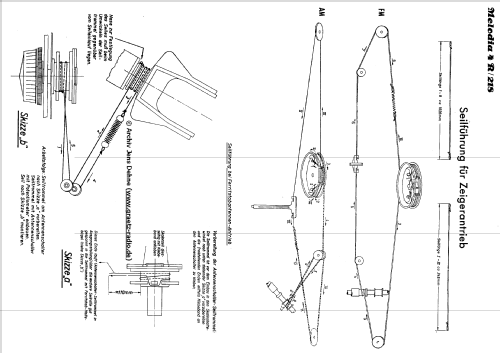

Literature/Schematics (2) -- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)
