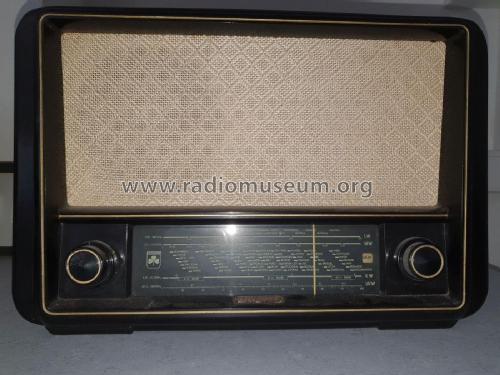

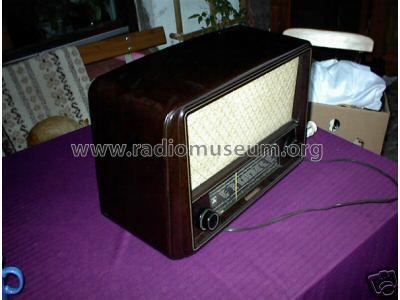

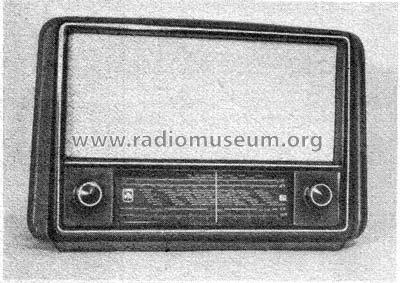

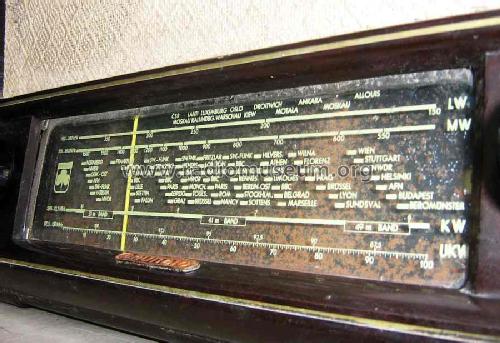

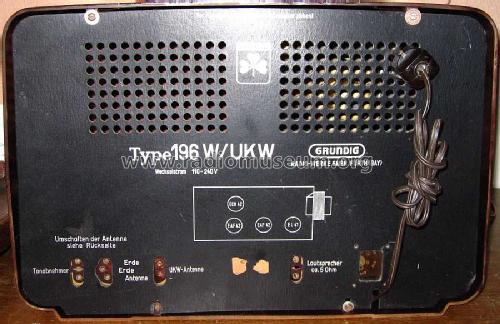

Grundig Radio-: 196W-UKW [Radio] ID = 175816 900x604
Select picture or schematic to display from thumbnails on the right and click for download.
For model 196W-UKW, Grundig (Radio-Vertrieb, RVF, Radiowerke):

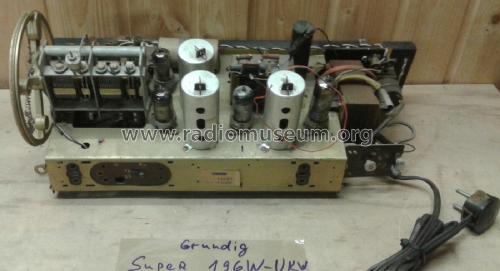

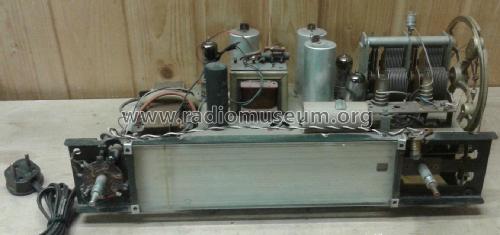

Gerät aus Schrottcontainer gerettet. EL 41 erneuert, Skalenseil gespannt, Mechanik gängig gemacht. Gehäuse und innenraum sehr gründlich gereinigt. Spielt toll und sieht wieder top aus.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EAF42 EAF42 EL41 AZ41 or
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz; 2 AF stage(s); Reflex
Tuned circuits 6 AM circuit(s)     6 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: 196W-UKW - Grundig Radio-Vertrieb, RVF,
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 325 x 225 mm / 19.3 x 12.8 x 8.9 inch
Notes

AM: variable Bandbreite;  FM: Flankendemodulation.

Net weight (2.2 lb = 1 kg) 8.3 kg / 18 lb 4.5 oz (18.282 lb)
Price in first year of sale 196.00 DM
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 4
Mentioned in Funkschau (5022)
Literature/Schematics (1) -- Schematic
