Grundig Radio-: 238 UKW [Radio] ID = 2348755 551x438
Select picture or schematic to display from thumbnails on the right and click for download.
For model 238 (W) UKW, Grundig (Radio-Vertrieb, RVF, Radiowerke):

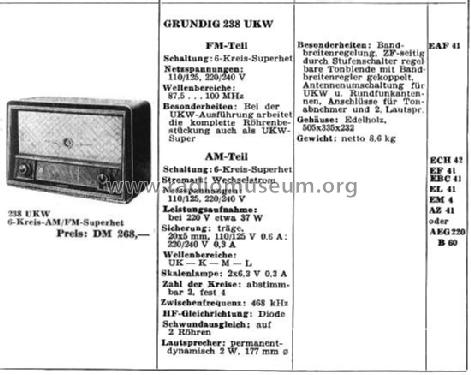

Quelle: Katalog des Rundfunkgrosshandels 1950/51 (VERG)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1950/1951 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EAF41 ECH42 EF41 EBC41 EM4 EL41 AZ41 or
Semiconductors (the count is only for transistors) 220B60
schematic requested
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)     6 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110/230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: 238 UKW - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 505 x 335 x 235 mm / 19.9 x 13.2 x 9.3 inch
Notes

Variable Bandbreite.

Der Grosshandelskatalog-Eintrag zu einem Grundig Modell 238 UKW ist in Bezeichnung und Röhrenbestückung fehlerhaft.

Richtig wäre 238W/UKW (5 Röhren) bzw. 238W/UKW-I (6 Röhren).
Die Röhre EAF41 fand in Deutschland keine Verwendung.

Net weight (2.2 lb = 1 kg) 8.6 kg / 18 lb 15.1 oz (18.943 lb)
Price in first year of sale 268.00 DM
Source of data Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb
