3045W-Ph Wechsler

3045W-Ph; Grundig Radio- (ID = 35931) Radio

3045W-Ph; Grundig Radio- (ID = 35932) Radio
Use red slider bar for more.
3045W-Ph; Grundig Radio- (ID = 35931) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner

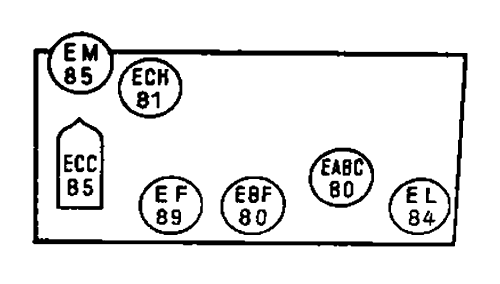

Valves / Tubes 7: ECC85 ECH81 EF89 EBF80 EM85 EABC80 EL84
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 3045W-Ph [Wechsler] - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 632 x 430 x 412 mm / 24.9 x 16.9 x 16.2 inch
Notes
Price in first year of sale 625.00 DM
Source of data Radiokatalog Band 1, Ernst Erb
