3048-W

3048-W; Grundig Radio- (ID = 625116) Radio

3048-W; Grundig Radio- (ID = 625117) Radio

3048-W; Grundig Radio- (ID = 625118) Radio

3048-W; Grundig Radio- (ID = 625119) Radio

3048-W; Grundig Radio- (ID = 625120) Radio
3048-W; Grundig Radio- (ID = 626065) Radio
Use red slider bar for more.
3048-W; Grundig Radio- (ID = 626065) Radio
Grundig Radio-: 3048-W [Radio] ID = 626065 732x585
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3048-W, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Manual Grundig

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1953 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EF41 EBC41 EL84 EM85
Semiconductors (the count is only for transistors) B250C90
Main principle Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s); Export model
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 225 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: 3048-W - Grundig Radio-Vertrieb, RVF,
Shape Tablemodel with Push Buttons.

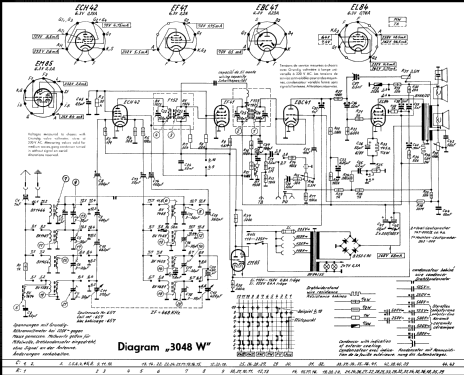

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Antonio Barros-Regada. See "Data change" for further contributors.
