4055W/56/S

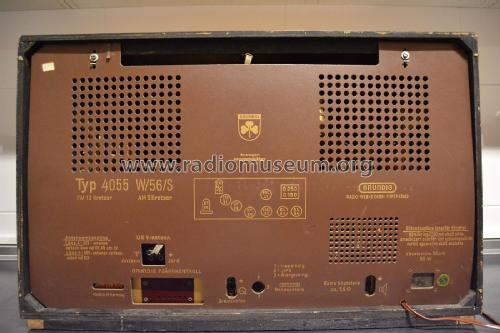

4055W/56/S; Grundig Radio- (ID = 2209376) Radio 4055W/56/S; Grundig Radio- (ID = 2209377) Radio
4055W/56/S; Grundig Radio- (ID = 2209378) Radio
Use red slider bar for more.
4055W/56/S; Grundig Radio- (ID = 2209376) Radio
Grundig Radio-: 4055W/56/S [Radio] ID = 2209376 1400x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4055W/56/S, Grundig (Radio-Vertrieb, RVF, Radiowerke):
it´s my picture

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EF89 EF80 EM34 or EM35 EABC80 EBC41 EL84 EL84
Semiconductors (the count is only for transistors) B250C150
Main principle Superheterodyne (common); Export model
Tuned circuits 9 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 5 Loudspeakers
Power out
from Radiomuseum.org Model: 4055W/56/S - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 706 x 444 x 300 mm / 27.8 x 17.5 x 11.8 inch
Notes

Grundig 4055W/56/S ist ein Exportmodell für Schweden.
Skalenbeschriftung teilweise in schwedischer Sprache.

Siehe auch das inländische Modell 4055/56

Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)

Model page created by Alberto Mengual. See "Data change" for further contributors.
