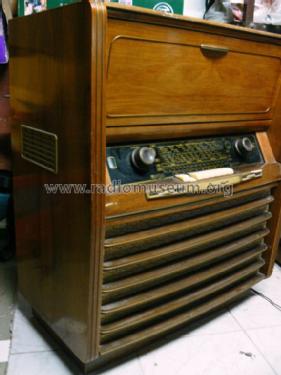

7063W/3D; Grundig Radio- (ID = 1548282) Radio
Grundig Radio-: 7063W/3D [Radio] ID = 1548282 576x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7063W/3D, Grundig (Radio-Vertrieb, RVF, Radiowerke):
by courtesy of the owner
Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name
Grundig Portugal || Grundig USA / Lextronix
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM85 EL84
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Tuned circuits 8 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer); Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 110; 125; 160; 220 Volt
Loudspeaker 4 Loudspeakers
Power out 4 W (unknown quality)
from Model: 7063W/3D - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 720 x 854 x 415 mm / 28.3 x 33.6 x 16.3 inch
Notes Rundfunk-Chassis = 3055W/3D.
Net weight (2.2 lb = 1 kg) 44.2 kg / 97 lb 5.7 oz (97.357 lb)
Price in first year of sale 780.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1955/56
