970 EES (970 EES-V)

970 EES ; Grundig Radio- (ID = 2385612) Radio 970 EES ; Grundig Radio- (ID = 2385613) Radio

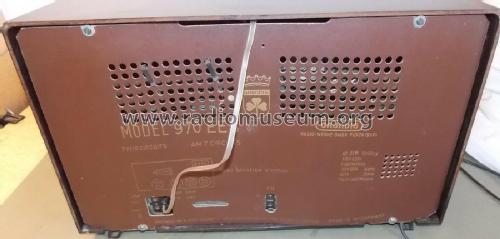

970 EES ; Grundig Radio- (ID = 2385614) Radio 970 EES ; Grundig Radio- (ID = 557031) Radio
Use red slider bar for more.
970 EES ; Grundig Radio- (ID = 2385612) Radio
Grundig Radio-: 970 EES [Radio] ID = 2385612 1400x771
Select picture or schematic to display from thumbnails on the right and click for download.
For model 970 EES (970 EES-V), Grundig (Radio-Vertrieb, RVF, Radiowerke):
ebay 183764900065, vonderzollernalb

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EF89 EABC80 EL95
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); Export model
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 970 EES - Grundig Radio-Vertrieb, RVF,
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 520 x 330 x 210 mm / 20.5 x 13 x 8.3 inch
Notes Grundig 970 EES, 970 EES-V (suffix V was just a sticker);
US export model, english labeled, AM-MW with CD marks, SW: ~6 - 16 MHz, FM: 88 - 108 MHz, sound equalizer buttons "Voice" & "Music", tone control, terminals for internal FM dipole or ext. antenna(s), phono in terminal, 35 W power consumption,
made in Germany, compare with German domestic model "Grundig Musikgerät 970".

Model page created by a member from A. See "Data change" for further contributors.
