Elite 500

Elite 500; Grundig Radio- (ID = 951067) Television

Elite 500; Grundig Radio- (ID = 951062) Television

Elite 500; Grundig Radio- (ID = 951063) Television

Elite 500; Grundig Radio- (ID = 951064) Television

Elite 500; Grundig Radio- (ID = 951065) Television

Elite 500; Grundig Radio- (ID = 951066) Television
Elite 500; Grundig Radio- (ID = 952192) Television Elite 500; Grundig Radio- (ID = 1550978) Television
Use red slider bar for more.
Elite 500; Grundig Radio- (ID = 952192) Television
Grundig Radio-: Elite 500 [Television] ID = 952192 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Elite 500, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1970 Category: Television Receiver (TV) or Monitor
Valves / Tubes 7: PL95 PCL805 PCH200 PCF802 PL504 PY88 A61-120W
Semiconductors (the count is only for transistors) 16:
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Elite 500 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel, low profile (big size).

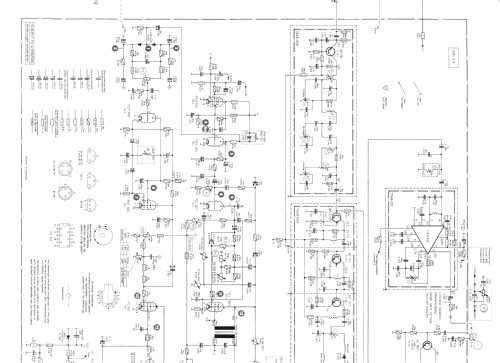

Notes 24" b/w TV with six pushbutton integrated tuner. For schematic see
Triumph 1710 that uses the same chassis. .

Model page created by Enrico Bonisolo. See "Data change" for further contributors.
