• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 137871

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EC92 ECH81 EF89 EABC80 EM85 EL84

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz; none

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

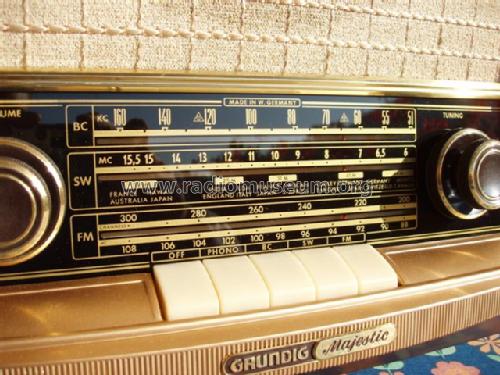

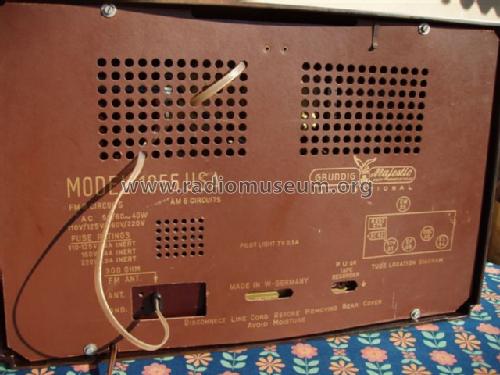

• Model: Majestic 1055 USA - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 490 x 330 x 250 mm / 19.3 x 13 x 9.8 inch

• Notes
• Grundig Majestic 1055USA ist ein Exportgerät. UKW/FM Bereich bis 108 MHz. Vergleiche inländisches Modell 1055W/3D mit anderer Röhrenbestückung.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Stefan Kälin. See "Data change" for further contributors.
