Majestic SO101/60 USA

Majestic SO101/60 USA; Grundig Radio- (ID = 1394568) Radio Majestic SO101/60 USA; Grundig Radio- (ID = 1395189) Radio
Majestic SO101/60 USA; Grundig Radio- (ID = 1395192) Radio Majestic SO101/60 USA; Grundig Radio- (ID = 1395195) Radio
Majestic SO101/60 USA; Grundig Radio- (ID = 1395201) Radio Majestic SO101/60 USA; Grundig Radio- (ID = 1395205) Radio
Majestic SO101/60 USA; Grundig Radio- (ID = 1395207) Radio Majestic SO101/60 USA; Grundig Radio- (ID = 1395210) Radio
Majestic SO101/60 USA; Grundig Radio- (ID = 1395219) Radio Majestic SO101/60 USA; Grundig Radio- (ID = 1831999) Radio
Use red slider bar for more.
Majestic SO101/60 USA; Grundig Radio- (ID = 1394568) Radio
Grundig Radio-: Majestic SO101/60 USA [Radio] ID = 1394568 933x882
Select picture or schematic to display from thumbnails on the right and click for download.
For model Majestic SO101/60 USA, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Courtesy Guest: Chris, USA

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1957 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EBF89 ECC83 EM84 ECC83 EL95 EL95
Main principle Superheterodyne (common); Export model
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 115-117/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Majestic SO101/60 USA - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 28 x 30 x 14 inch / 711 x 762 x 356 mm
Notes

Export version probably very similar to PX stores version SO101/60PX and related to European SO101/60 (LW no SW) and European SO1U1 (SW no LW)

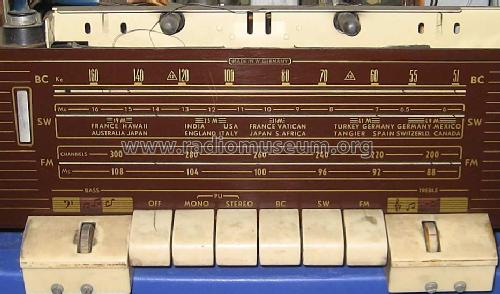

For USA, so MW is marked BC and VHF marked FM on scale.

Grundig  TW501G three speed autochanger.

Stereo ampilfier and Magic Eye tuning.

External Stereo Decoder or Panoramic socket option.

DIN socket for external taperecorder.

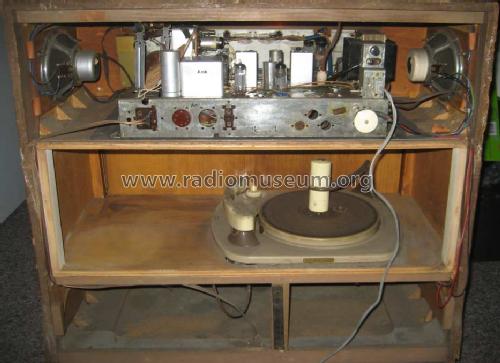

At least three loudspeakers. (L & R at sides and large speaker at bottom)

Model page created by Michael Watterson. See "Data change" for further contributors.
