Stereo-Konzertschrank SO101/60

Grundig (Radio-Vertrieb, RVF, Radiowerke)

  • Year
  • 1959/1960
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 22235
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

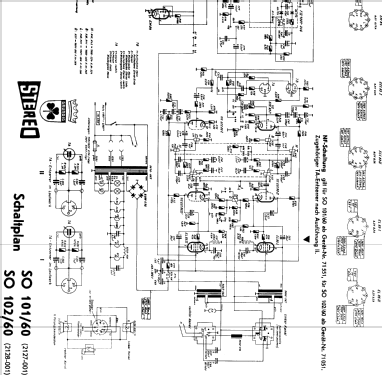

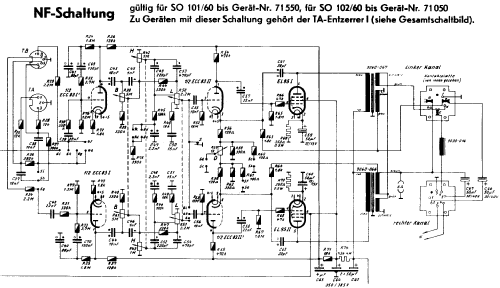

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 7 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 220 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo-Konzertschrank SO101/60 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 730 x 800 x 390 mm / 28.7 x 31.5 x 15.4 inch
  • Notes
  • Phono-Chassis = TW501G Stereo.

    See also similar models

    Export version SO101/60 USA Grundig Majestic, probably very similar to PX stores version (but different chassis mains connection) SO101/60PX and related to European SO1U1 (SW no LW)

  • Net weight (2.2 lb = 1 kg)
  • 28 kg / 61 lb 10.8 oz (61.674 lb)
  • Price in first year of sale
  • 638.00 DM
  • External source of data
  • Erb
